Product details

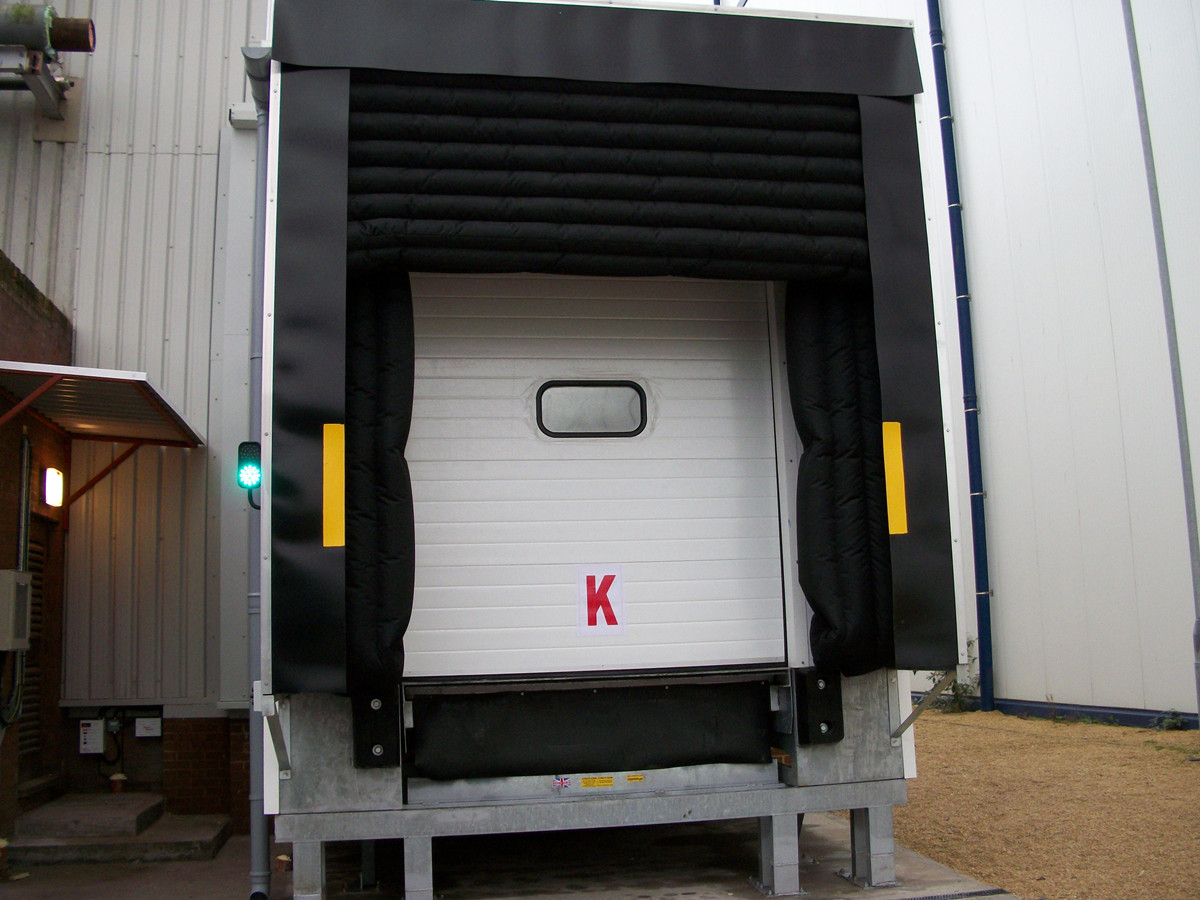

Dock shelters & Seals are used for seal between warehouse and truck containers when loading. Inflatable dock shelter is the most high end premium type, with excellent thermal insulation, airtight sealing and ability to suit various truck sizes. It is made from nylon airbag and PU sandwich panel frame. When loading or unloading going on, its top and side airbags will inflate to embrace containers tightly. It can prevent exterior air and dust entering the warehouse during the loading and unloading job. And with thick airbags, it will also reduce heat loss and keep cold inside warehouse.

If your warehouse has high clean level, or temperature control like cold rooms, inflatable loading dock shelter will be the best choice for you.

INFLATABLE DOCK SHELTER 42

inflatable dock shelter

It is the most advanced and most high-end dock seal.

Fit for various container sizes: Adopt the PVC fabric material as the airbag. When working, the motorized air

pump motor blow air into the joined air bags, to fill the space between door and

truck containers. It can work for trucks with various container sizes.

High airtight and thermal insulated: Inflatable dock shelter adapts accurately to various size of lorry or containers. It

offers excellent sealing performance and prevents outdoor heat entering

warehouse. Thus it is fit for areas with very high demand for thermal insulation and air-tightness, like food and pharmaceutical warehouses.

Other types of loading dock shelter & seal may suit your warehouse better:

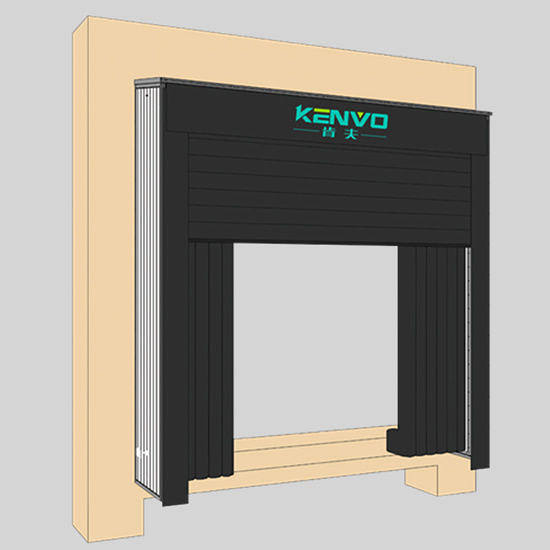

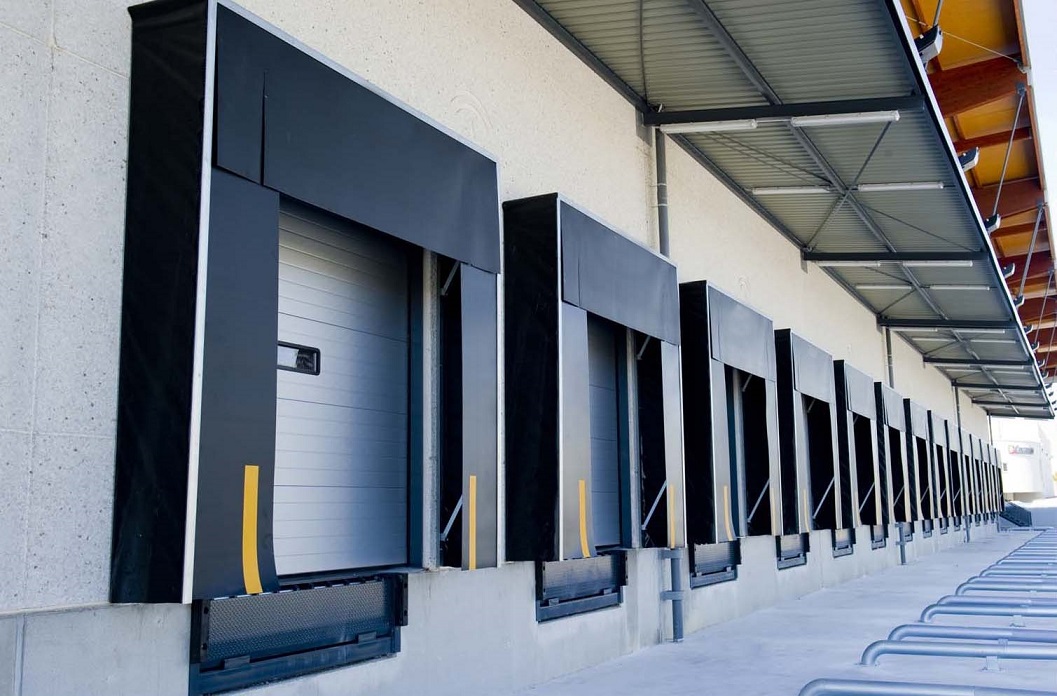

Type No.1. Mechanical Dock Shelter or Seal (suitable for different truck sizes, mostly used type)

When truck pull back towards the mechanical dock seal, its fabric and framework will be able to retract backward flexibly. No matter the container is bigger or smaller, the pvc curtains can cover it properly. It enclose the truck containers and prevent exterior air and dust entering the warehouse during the loading and unloading job. So such mechanical dock shelters can work with different trucks of various sizes. It is the mostly used type loading dock shelters in warehouses.

retractable loading dock shelter

Data sheet:

Color：Black

QTY of fabric layers：2

Fabric type：Horizontal polyester

Surface material：PVC fabric

Basic material：PVC fabric

Thickness of front fabric(mm)：3.0

Density(kg/m2)：2.7

Thickness of side fabric(mm）:0.5mm

Retractable metal frame：Aluminum alloy profile

Tear strength(N/mm)：150

1% Stress(N/mm)：8

Max width (M)：5

Work temperature(℃)：-30/+80

Horizontal stability：Yes

Fireproof grade：B2

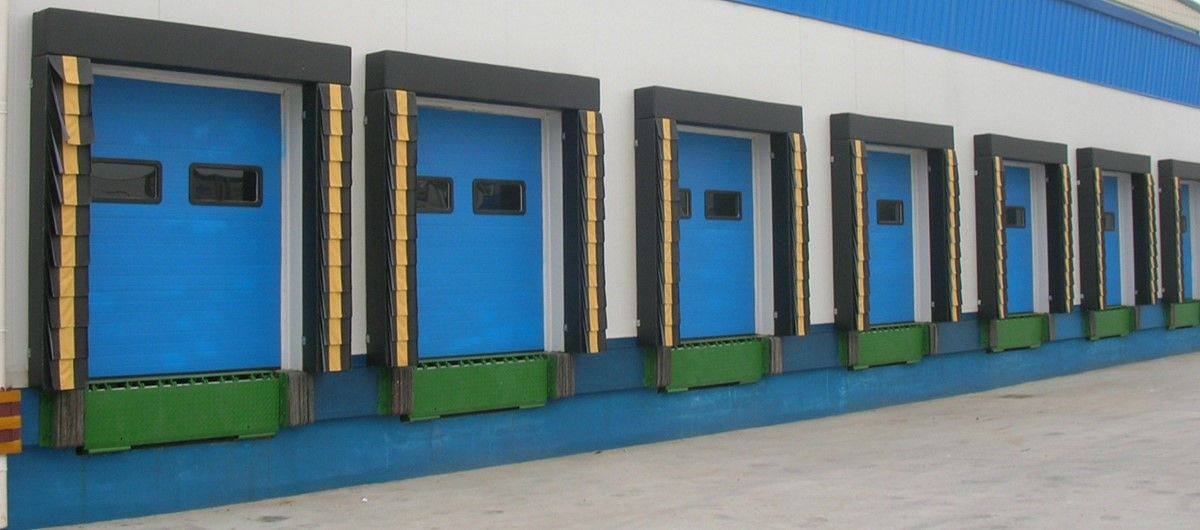

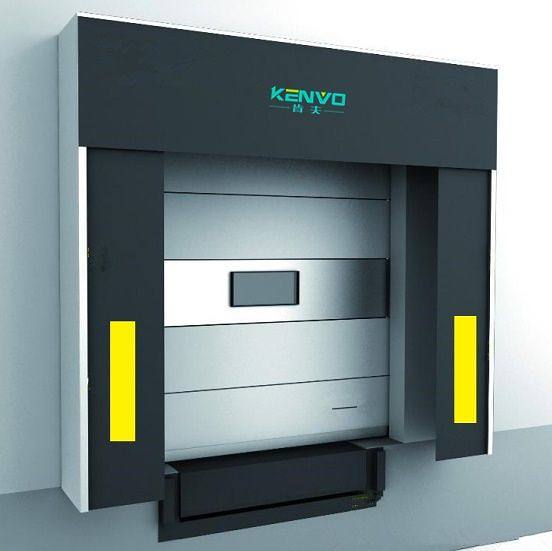

Type No.2. Thermal Insulated Dock Seal (Insulated model, for uniform size truck or container)

If your loading bay doors and trucks are all in uniform size, or your warehouse is cold rooms with thermal insulation requirement, such fixed pad dock seal is the best choice.

insulated loading dock seal

Fit for loading docks working with uniform trucks with containers of same or similar sizes. It can realize effective seal and thermal insulation.

1. The back structure is made from galvanized steel plate or anti-corrosive solid wood, touching with the wall closely. Inside is filled with highly compressed sponge, with density of 30KG/m³. Special pressure-relief design can reduce the friction with dock and trucks. This will prolong work life of surface fabric.
2. Surface fabric：Made from PVC fabric with self-extinguishing function. Weight: 800g/㎡. There are fabric shutter folds on top beam and two side columns. Thus it can endure long-time friction and squeezing.

Complete Loading Dock:

Loading Dock or Laoding Bay, is a complete assembly of three parts:

Dock Door: Sectional door or Roller shutter door. It can be thermal insulated.
Dock Leveler: To connect warehouse floo and truck floor. And forklifts can run on it directly into container;
Dock Shelter&Seal: To improve the airtight and seal when loading or unloading goods. It can prevent outside air and dust, and also keep temperature inside room.

It is widely seen in warehouse, factory, and logistics industry. These three parts work together to improve loading efficiency and protect indoor enviroment.

We can offer the whole set for you. Please find more detail on page of Sectional Door and Dock Shelter.

Sectional Dock Door

Dock Leveler
