HX9 led light tower
3 year ago

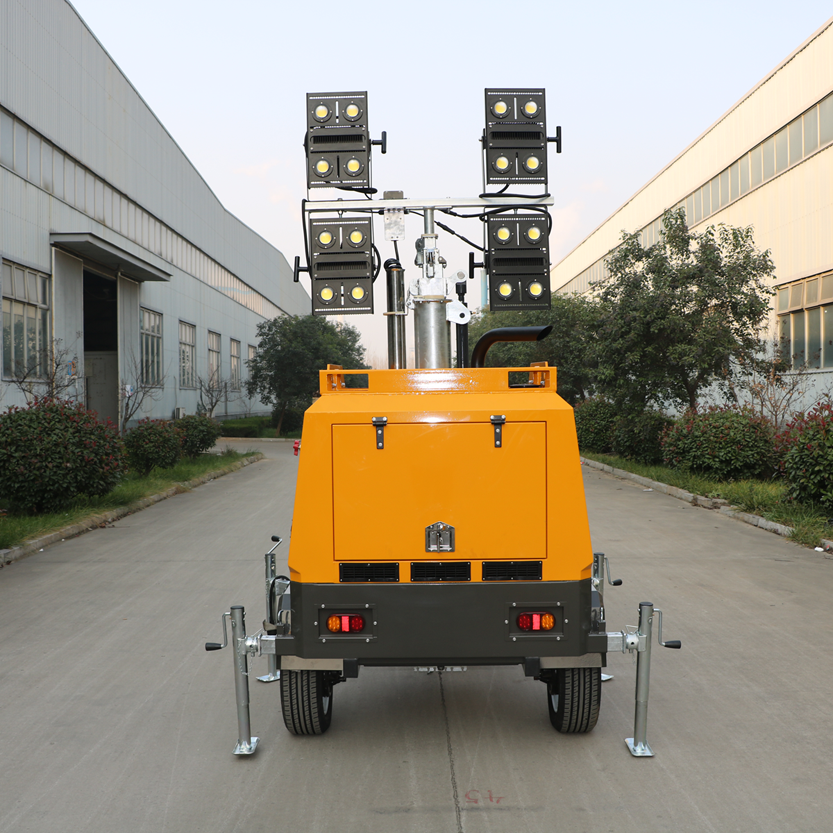

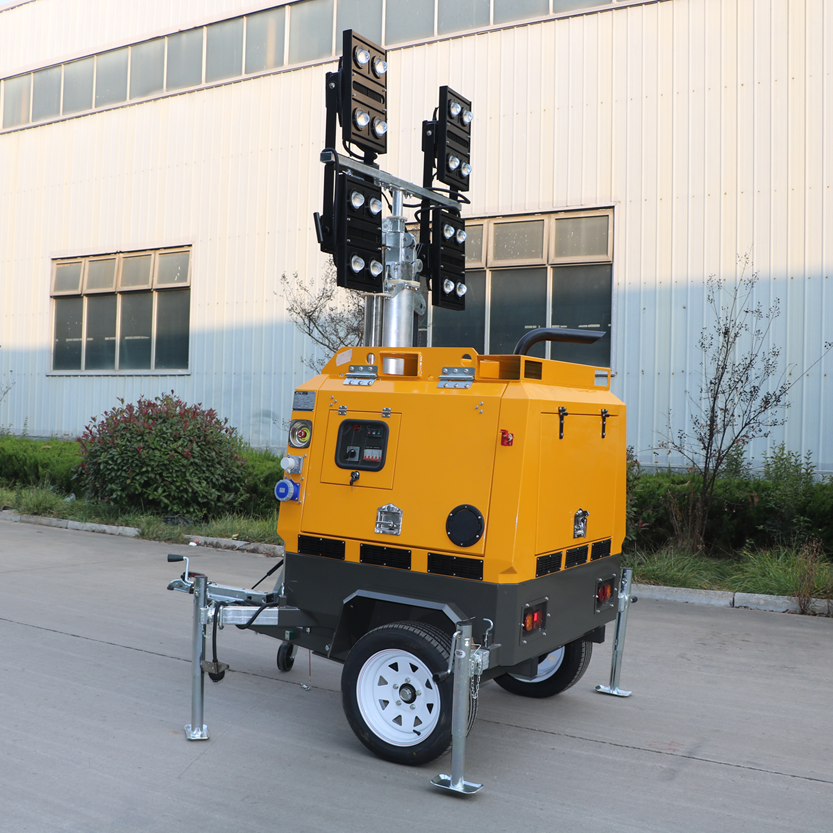

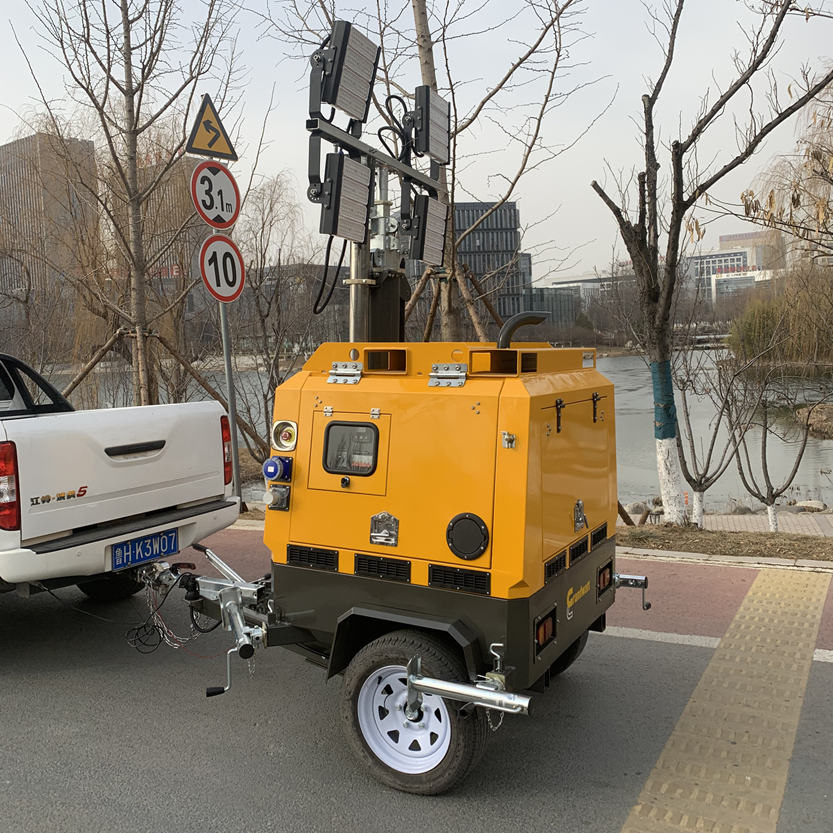

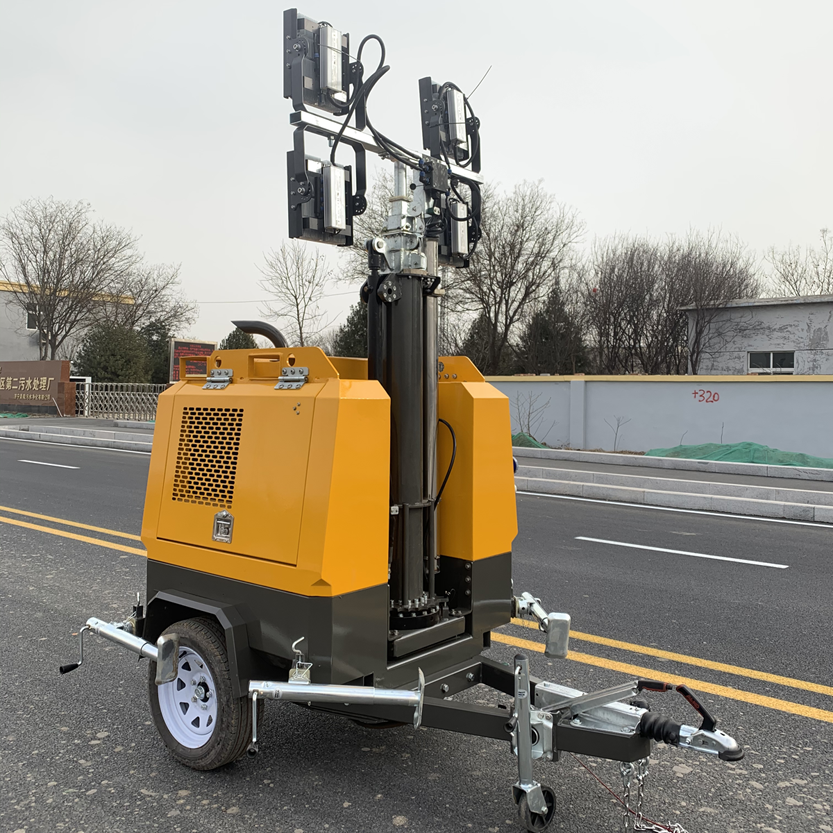

HX9 Series Light Tower

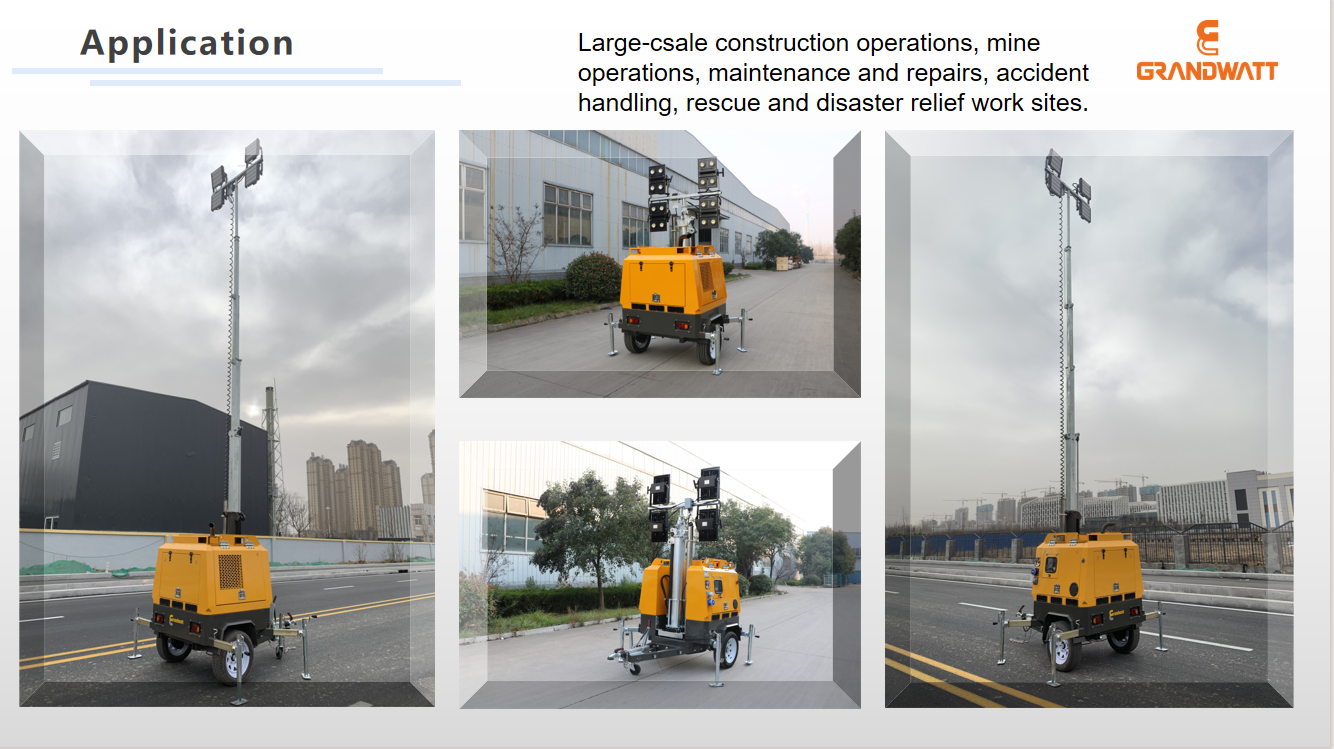

Diesel 9m light tower HX9-R1200/1600/2000 is mini hydraulic light tower, 9 m hydraulic light mast, 359° Manual rotation with locking. The mast will not raise unless the handbrake is up. It has a safe brake system to avoid towing the trailer with extended mast. It is applied in road, construction and mining, etc. It is powered by Japan Kubota engine and Italy Mecc Alte alternator, with 4*300/ 4*350/ 4*400/ 4*500 W LED. It is economic, compact designed with super smaller size for transportation, it can be loaded 16 sets in a 40’high cube to save more transportation cost as sea freight increasing crazily. This model is the most economic type and will bring you good lighting solution. It is widely welcome in Australia market, Asia market, North and South America market, etc. If you consider energy consumption and lighting area, the 9m hydraulic light tower would be great choice with competitive price.
FEATURES
PRODUCT SPECIFICATIONS
|
HX9 Series Light Tower |
||||
|
Standard Model |
HX9-R1200 |
HX9-R1600 |
HX9-R2000 |
|
|
Engine |
Model |
D1105 Kubota or 3TNV76 Yanmar |
||
|
Engine characters |
3 cylinders, 4 cycles & Water cooling |
|||
|
Combustion/Aspiration |
IDI/ Natural aspiration |
|||
|
Alternator |
Model |
LT3N-130/4 Mecc alte |
||
|
Frequency (HZ) |
50/ 60 |
|||
|
Rating voltage |
230/ 240-120 VAC |
|||
|
Insulation & Protection |
Class H & IP23 |
|||
|
Mast & Luminaire |
Luminaire |
4*300W LED |
4*400W LED |
4*500W LED |
|
Luminous flux |
180,000 Lm |
232,000 Lm |
290,000 Lm |
|
|
Mast style |
7 sections, Hydraulic drive |
|||
|

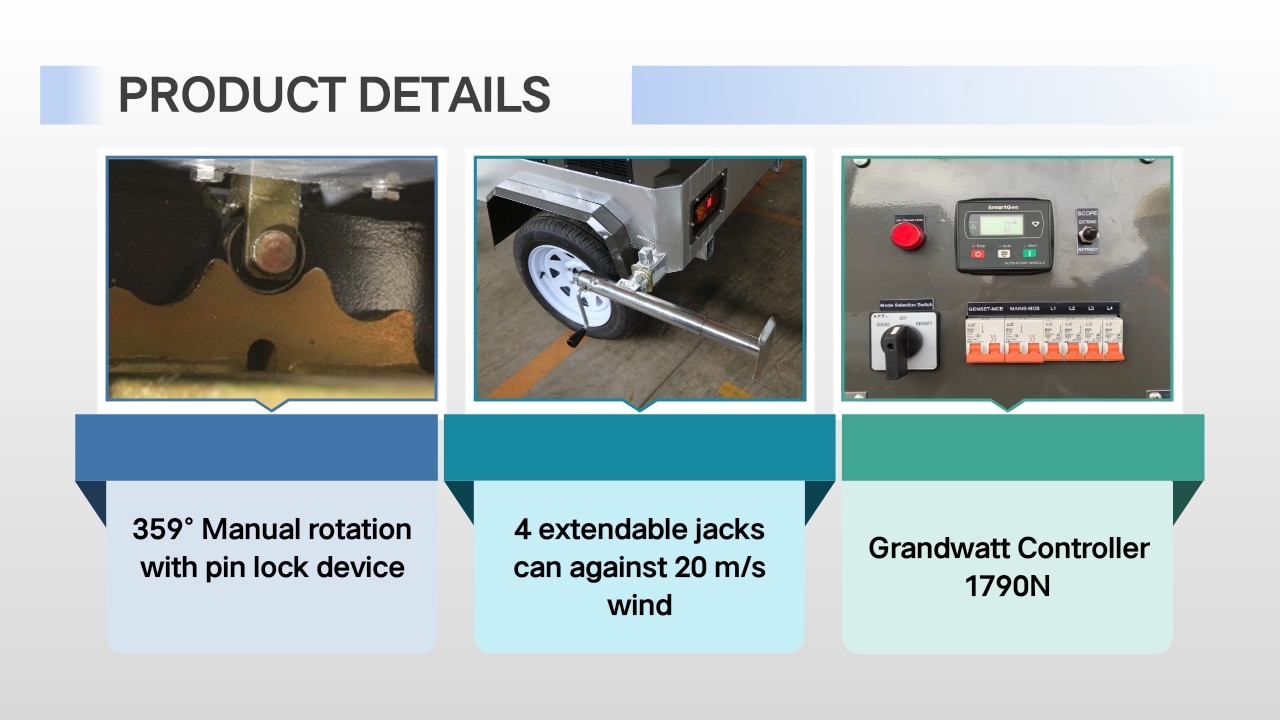

Mast rotation |
359° Manual rotation with locking |
|||
|
Mast structure treatment |
Hot galvanizing |
|||
|
Light rotation |
359° Manual rotation |
|
||
|
Light tilt |
Manual |
|||
|
Trailer |
Suspension & brake |
Torsion axle with AMOSS kit |
||
|
Towing bar |
"A" style with a supporting wheel |
|||
|
Stabilizing leg |
4 extendable jacks |
|||
|
Wheel |
14" rim with regular tire |
|||
|
Towing Coupler |
2'' ball hitch |
|||
|
Tail lights |
US, UK or Australian standard tail lights |
|||
|
Max towing speed |
100 km/h ( 62 mph) |
|||
|
General Data |
Accessory |
1*socket output and 1*mains input |
||
|
Fuel tank |
100 liters ( 26 US gal) bunded metal tank |
|||
|
Operating hours |
130 hours |
110 hours |
100 hours |
|
|
Control system |
Grandwatt Controller 1790N |
|||
|
Max. against wind |
20 m/s (45 mph) |
|||
|
Max. acoustic pressure |
9 dB(A) at 7 meters away |
|||
|
Max. load in 40' high cube |
16 | |||
|
Note: C- Challenge R- Regular P- Premium |
||||
PRODUCT DISPLAY
EXHIBITION
CERTIFICATIONS
