Bulk feed tank semi-trailer
2 year ago
2. The vertical twisting dragon increases the pipe diameter and is set at an angle, resulting in fast unloading speed, high efficiency, and greatly reduced crushing rate. It is also equipped with a large diameter turning interface, making unloading smoother and less clogged. The lower crushing rate is particularly suitable for the use of chicken feed;

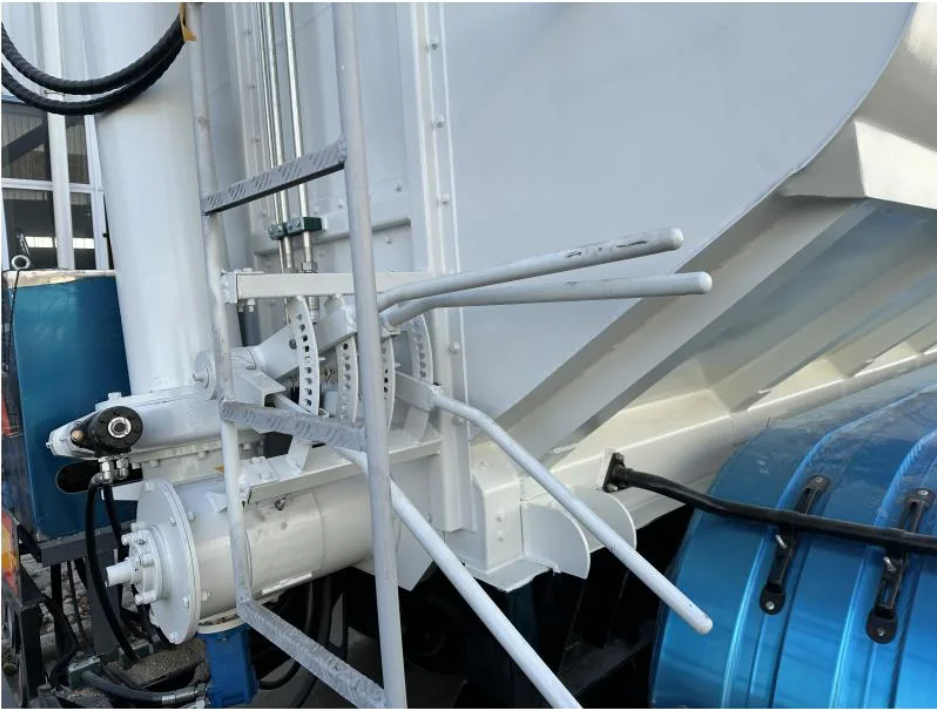

3. The twisting dragon steering system adopts an integrated steering structure of plane rotation support and turbine worm, which is reliable, durable, maintenance free, and suitable for complex working conditions;
4. The spiral blades of the twisting dragon are made of wear-resistant materials and are integrally extruded into shape. The dynamic balance of each blade shaft is tested.
5. The entire tank body is shot blasted and sandblasted to completely remove rust on the surface of the tank and the oxide layer on the surface of the board, increasing the adhesion of the paint and making it durable. The topcoat adopts PPG water-based paint imported from the United States, with a professional drying room that is acid resistant, alkali resistant, and high-temperature washable;
6. Each tank body undergoes a strict 360 ° no dead angle water spraying test before leaving the factory, completely eliminating defects such as false soldering, false soldering, and missed soldering that may cause rain and water leakage during use and contaminate feed;
|
Type |
Bulk feed tank semi-trailer |
|
Axles |
Fuwa, 3 Axle |
|
Overall Dimension(mm) |
12000×2490×3798 |
|
Wheelbase(mm) |
5370+1310+1310 |
|
Curb weight(kg) |
11900 |
|
Loading weight(kg) |
30000 |
|
Approach/departure angle(°) |
-/15 |
|
Front /rear overhang(mm) |
-/2310 |
|
Wheel track(front/rear)(mm) |
1840/1840/1840 |
|
Axle loading(front/rear) (kg) |
-/23000 |
|
ABS |
Available |
|
Rim & Tire |
Quantity:12+1 |
|
Specification:12R22.5 |
|
|
body: |
|
|
Shape |
Square |
|
Bulk Capacity |
58cbm |
|
Material |
Tank: Aluminium Alloy |
|
Thickness: 3~4mm |
|
|
Compartments |
Quantity: 6 |
|
Hydraulic pump |
DENISON USA |
|
Hydraulic motor |
EATON USA |
|
Conveying height |
8~10 M |
|
Discharge rate |
>400~600 kg/min |
|
Residual Rate |
<0.05% |
|
Discharge rotation angle |
+ 180 degree |
|
Medium density |
400-500 kg/cbm |
