3 Axles Bulk Cement Tanker
2 year ago
· More than 20 years professional design and production experience.
·Choose Regular manufacturers purchase materials,like Q235 baoshan.
·Use Domestic first-class production equipment.
·Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires,Air pressure test for each tanker.
·Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray by frame container
Specifacition
|
Tare weight |
9000kg |
|
Size |
10000mm*2500mm*4000mm |
|
Volume |
35M3 |
|
Tank body |
Q235A/5mm steel sheet |
|
End plate |
Q235A/6mm .ball shape |
|
Axle |
3 axle HJ brand german type |
|
Suspension |
Mechanical suspension German type HJ brand |
|
Leaf spring |
Leaf spring 10pcs |
|
Manhole cover |
500mm manhole cover .2 sets |
|

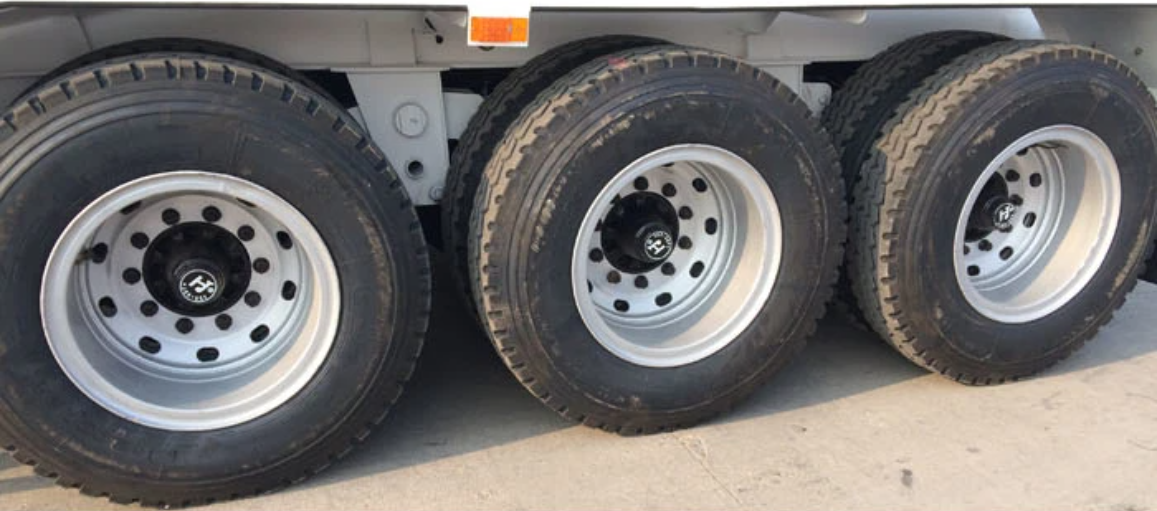

Tire |
12R22.5 double star brand 12pcs |
|
Wheel rim |
9.0-22.5 better brand 12pcs |
|

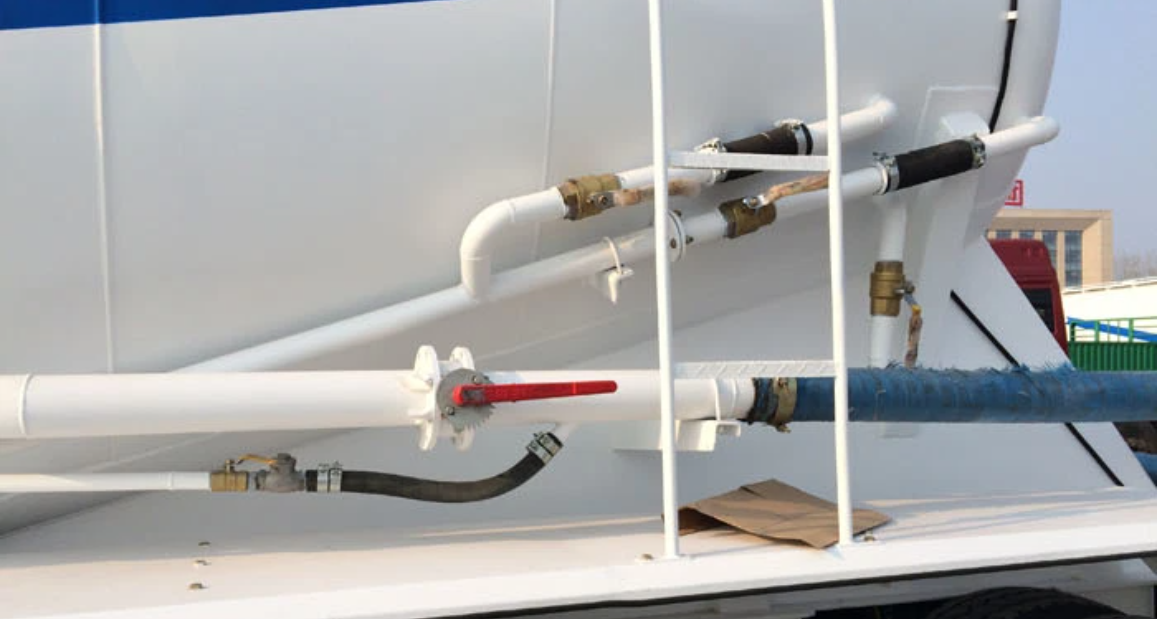

Discharge valve |
4"disc valve |
|
Discharge pipe |
4"seamless steel tube |
|
Outlet pipe |
4"rubber hose.6m |
|
Kingpin |
JOST brand 2" bolt-in king pin |
|
Landing gear |
JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
|
Engine |
Diesel engine: weichai brand model: 4102. |
|
Air compressor |
37 KW, 0.2Mpa. 1000r/Min |
|
Compartment |
Single |
|
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
ABS |
Optional |
|
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Air-charging system |
2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge |
|
Quadratic blow |
1" diameter check valve |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
|
Accessories |
One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
|
Date of delivery |
20 workdays after we received 30% of contract value T/T down payment. |
