4 Axles Fuel Tank Semi Trailer
2 year agoIn terms of accessories, we have designed climbing ladders, non-slip walkways, folding handrails, manhole covers, etc. for the new 4axle aluminum fuel tanker semi trailer, which are convenient for customers to check the progress of medium loading and are safer. Equipped with standard accessories, including one standard tool box, one valve box, two fire extinguishers and two spare tire racks.
Type |
4 Axles Fuel Tank Semi Trailer |
Overall Dimension |
13500mm*2500*3950mm |
Tank Capacity |
70,000L, 4 compartments |
Total Volume(m3) |
70 |
Tank Body |
The tanker body made of 5 mm steel plate, the foreside head and back side head made of 6 mm steel plate, The shape is Elliptical Or Square. Material is carbon steel. |
Equipment |
1. With 4 Explosion proof Manhole Covers. 2. With 4 units Subsea Valve. 3. With 5’’ rubber hose, 2 pcs, 6m long discharging pipe. 4. With ladder installed at the rear of the tank body. 5. Steel walkway on top of the tank made of antiskid plate. 6. Foldable lifting Handrail fixed on the top of tank. |

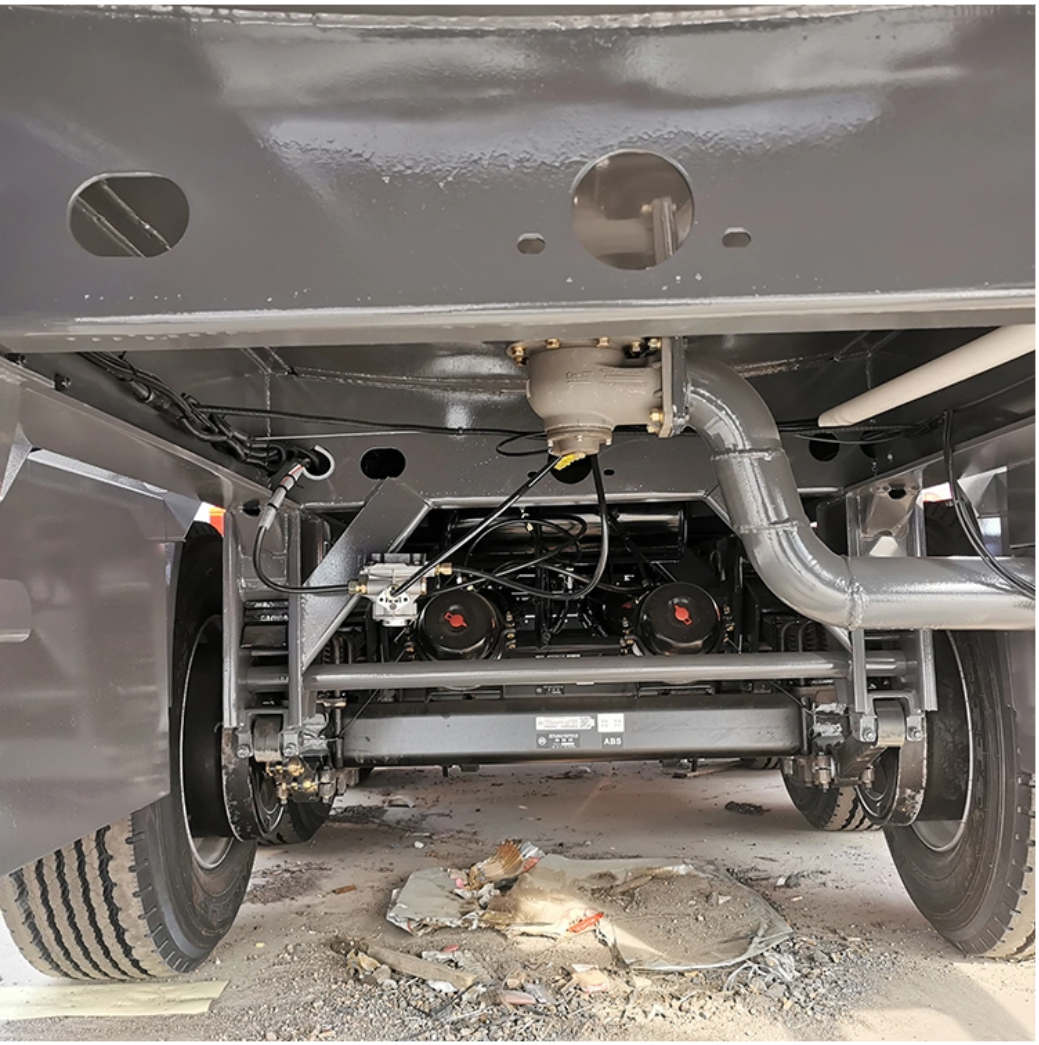

Suspension |
4 axles 10-pcs leaf spring suspension with equalizer beam |
Tires |
12.00R20, tubeless tires, 16 pieces |
Axles |
4 axles, 16T capacity/axle, Fuwa, BPW, or Chinese famous brand |
Brakes |
Dual lines pneumatic brake system, parking brake |
Under Frame |
|
Main Beam |
I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm |
Cross Beam |
Mild Alloy Q235B, 14# channel beam |
King Pin |
90#(3.5'') or 50# (2.0''), JOST Brand |

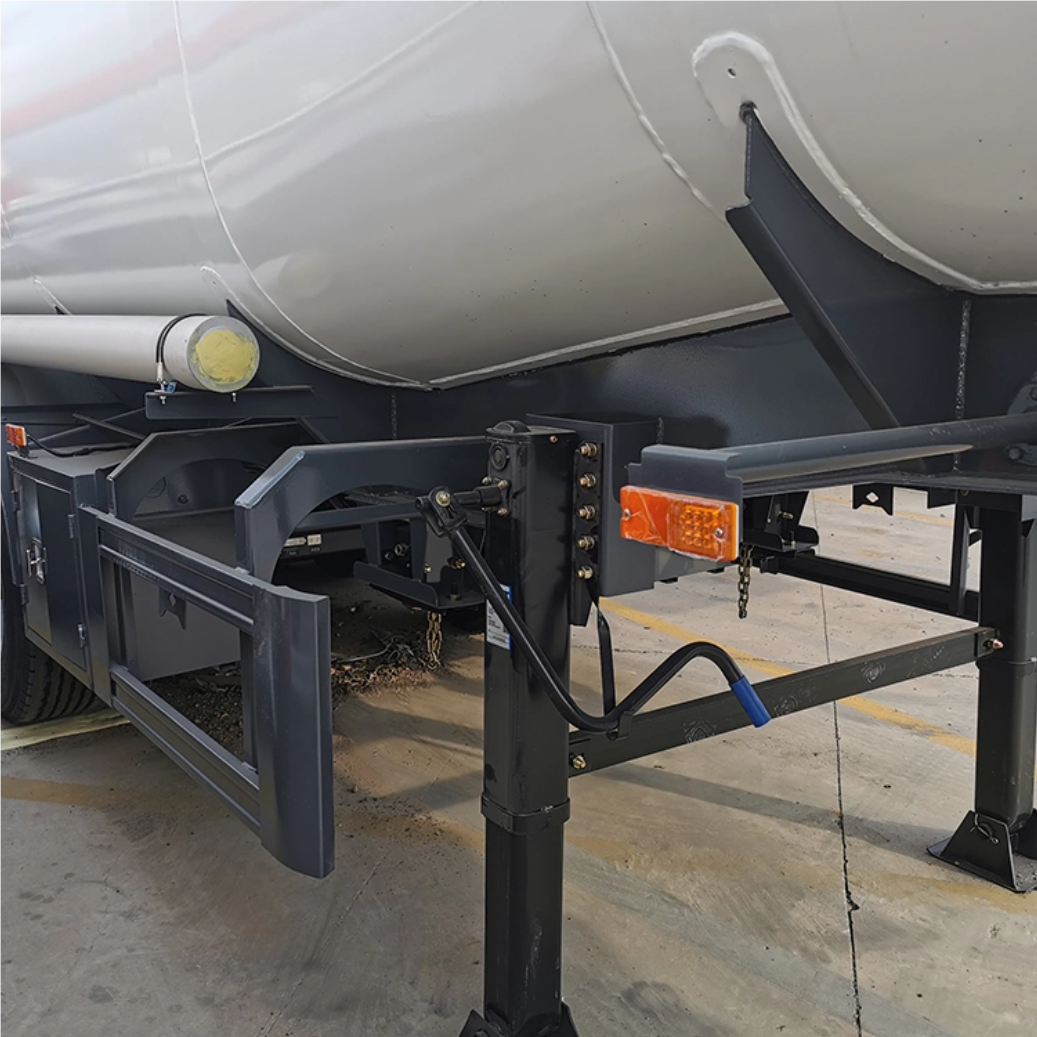

Landing Gear |
Static capacity 28 Tons |
Flatbed Floor |
Checkered sheet, thickness 5 mm |
Rear Ladders |
Spring power-assisted |
Electrical & Paint |
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Wiring |
24V, 6 lines |
Others |
|
Tool box |
1 piece |
Spare tires carrier |
1 piece |
Color |
Optional (White, Blue, Yellow, Green...) |
