Carbon Steel Fuel Tanker Trailer

Type

Carbon Steel Fuel Tanker Trailer

Overall Dimension

12500mm*2500*3950mm

Tank Capacity

45,000L, 3 compartments

Total Volume(m3)

45

Tank Body

The tanker body made of 5 mm steel plate,

the foreside head and back side head made of 6 mm steel plate, The shape is Elliptical Or Square. Material is carbon steel.

Equipment

1. With 3 Explosion proof Manhole Covers.

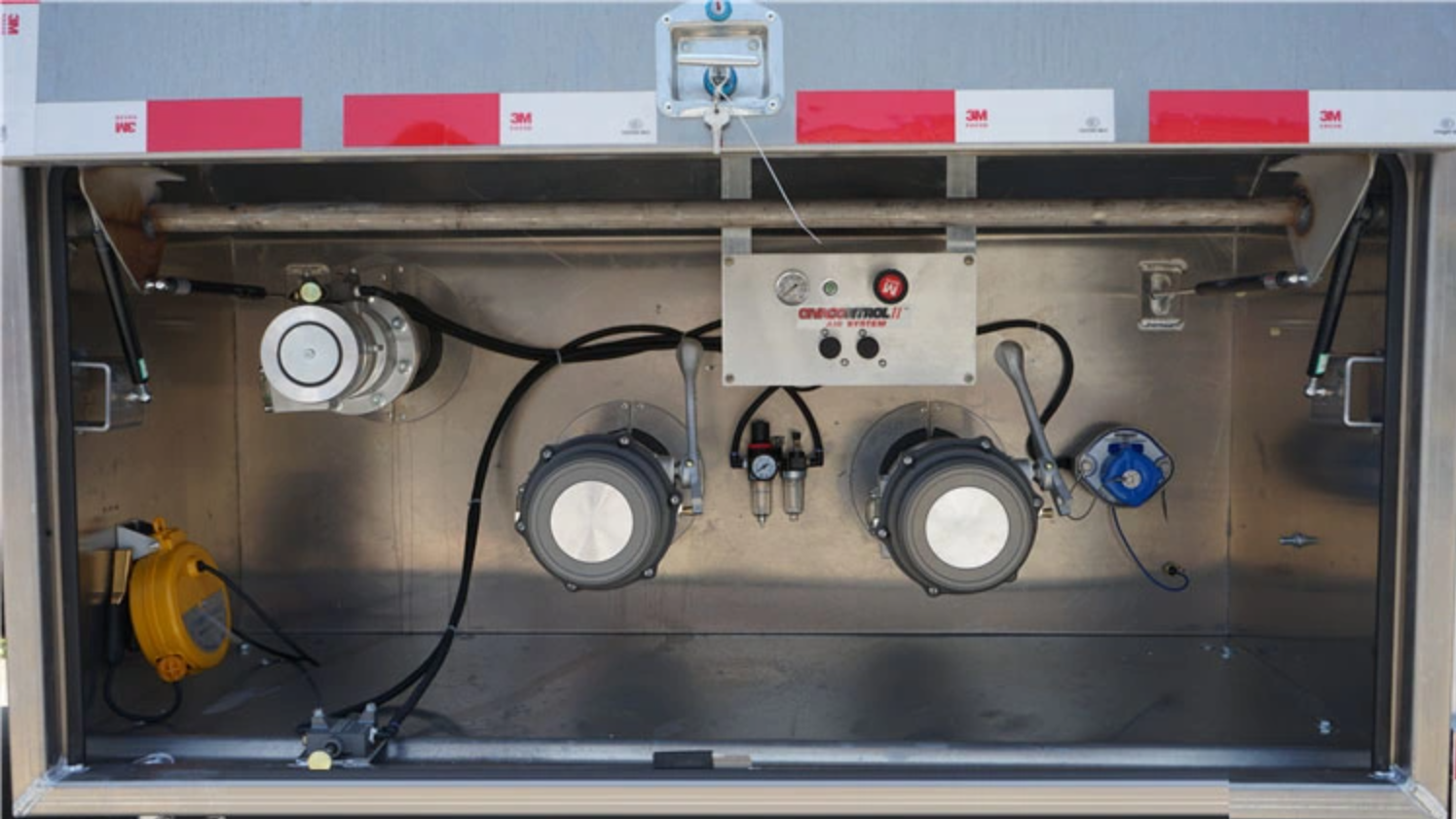

2. With 3 units Subsea Valve.

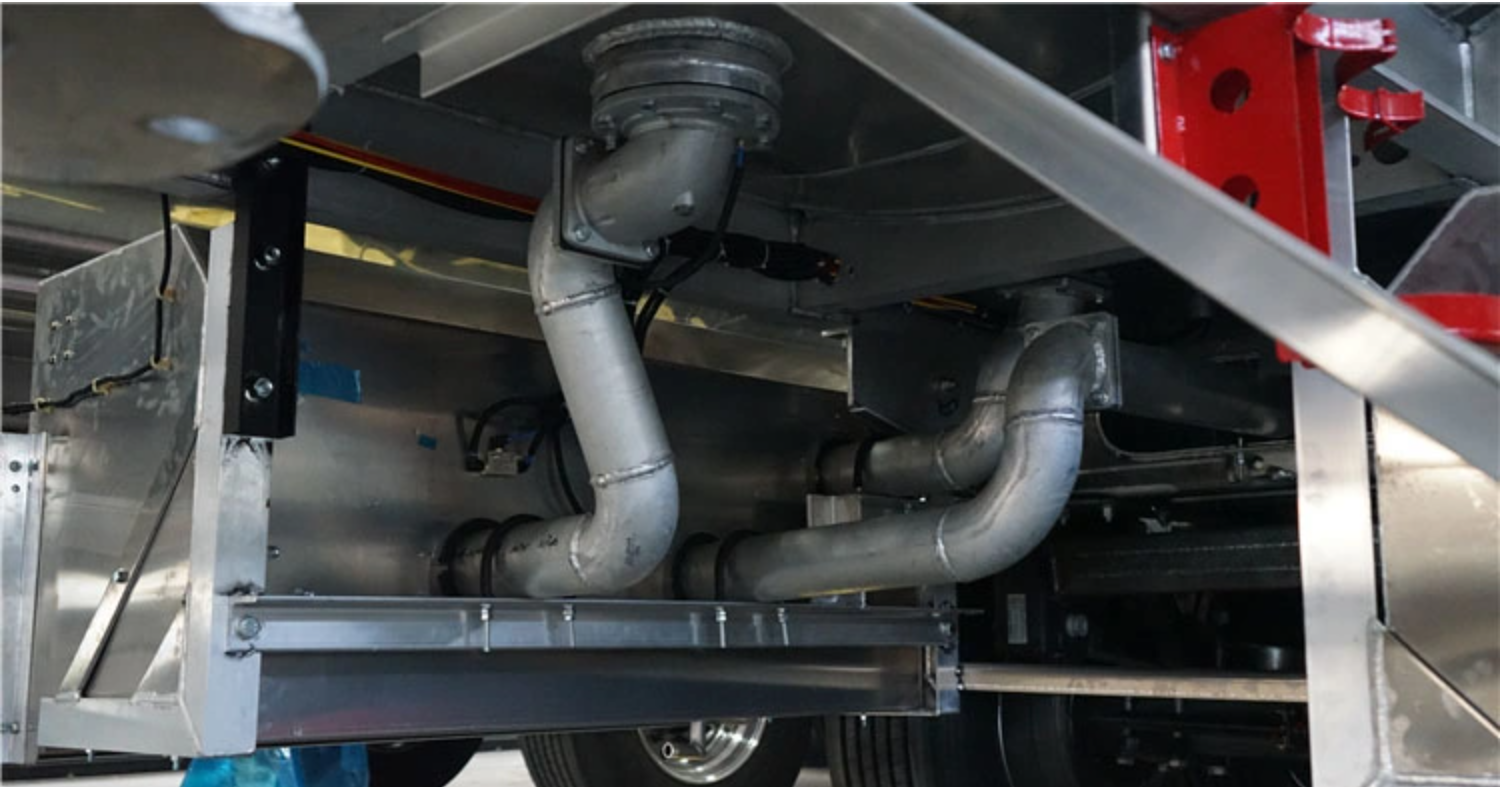

3. With 5’’ rubber hose, 2 pcs, 6m long discharging pipe.

4. With ladder installed at the rear of the tank body.

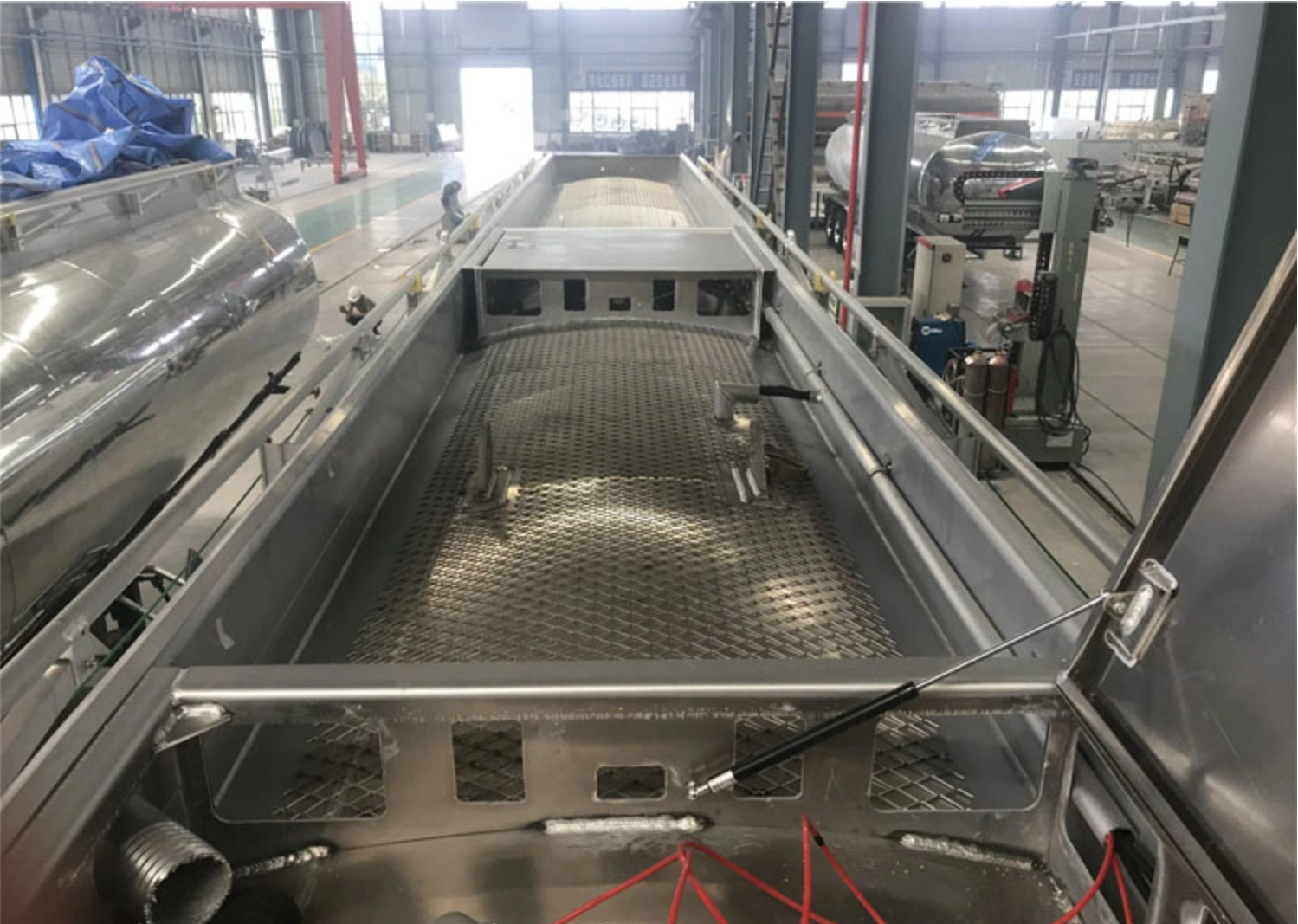

5. Steel walkway on top of the tank made of antiskid plate.

6. Foldable lifting Handrail fixed on the top of tank.

Suspension

Tri-axle 10-pcs leaf spring suspension with equalizer beam

Tires

315/80R22.5, tubeless tires, 12 pieces

Axles

3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand

Brakes

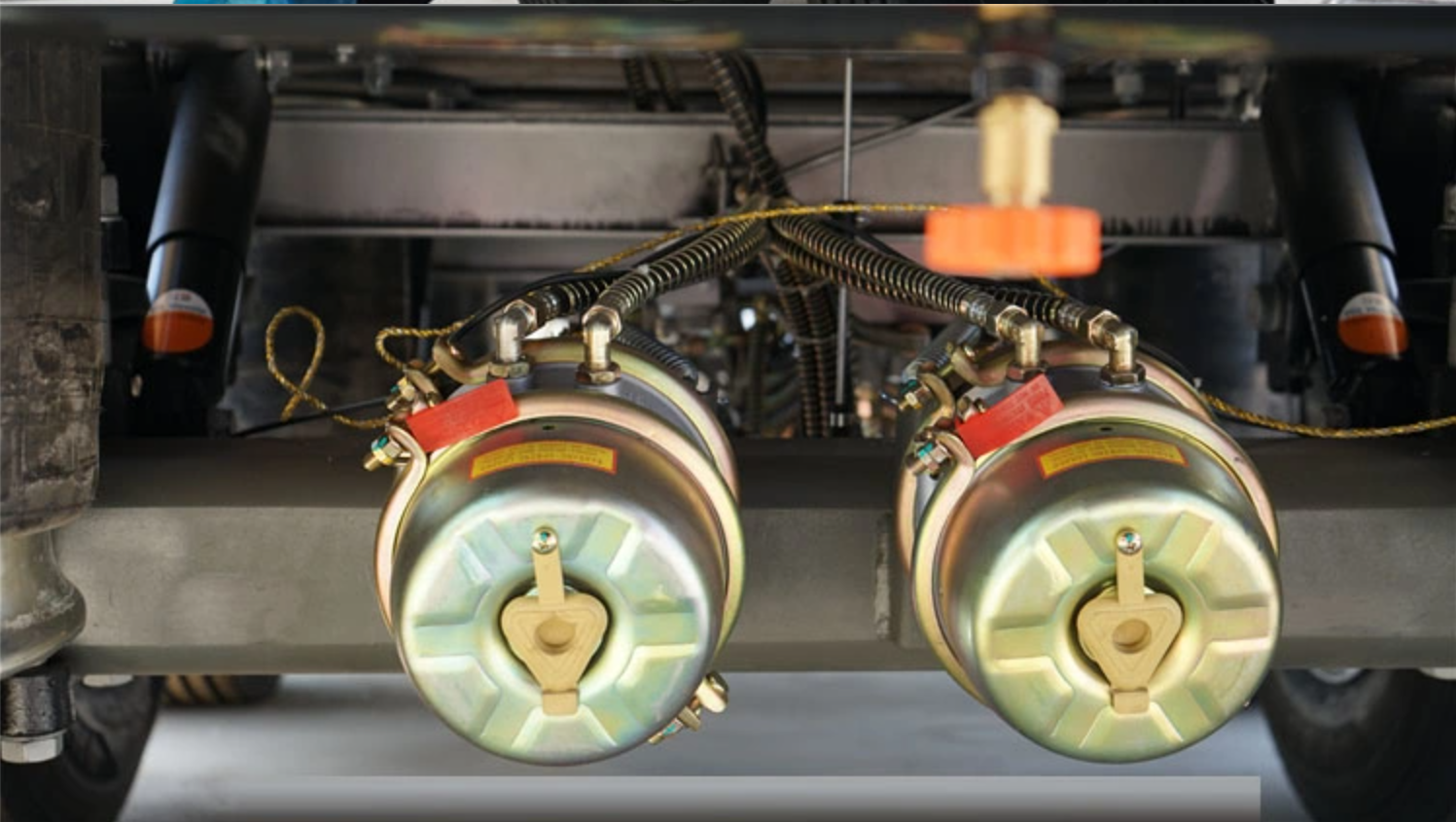

Dual lines pneumatic brake system, parking brake

Under Frame

Main Beam

I shape, Mild Alloy (Q345) by Automatic submerged arc welding.

The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm

Cross Beam

Mild Alloy Q235B, 14# channel beam

King Pin

90#(3.5'') or 50# (2.0''), JOST Brand

Landing Gear

Static capacity 28 Tons

Flatbed Floor

Checkered sheet, thickness 5 mm

Rear Ladders

Spring power-assisted

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Wiring

24V, 6 lines

Others

Tool box

1 piece

Spare tires carrier

1 piece

Color

Optional (White, Blue, Yellow, Green...)
