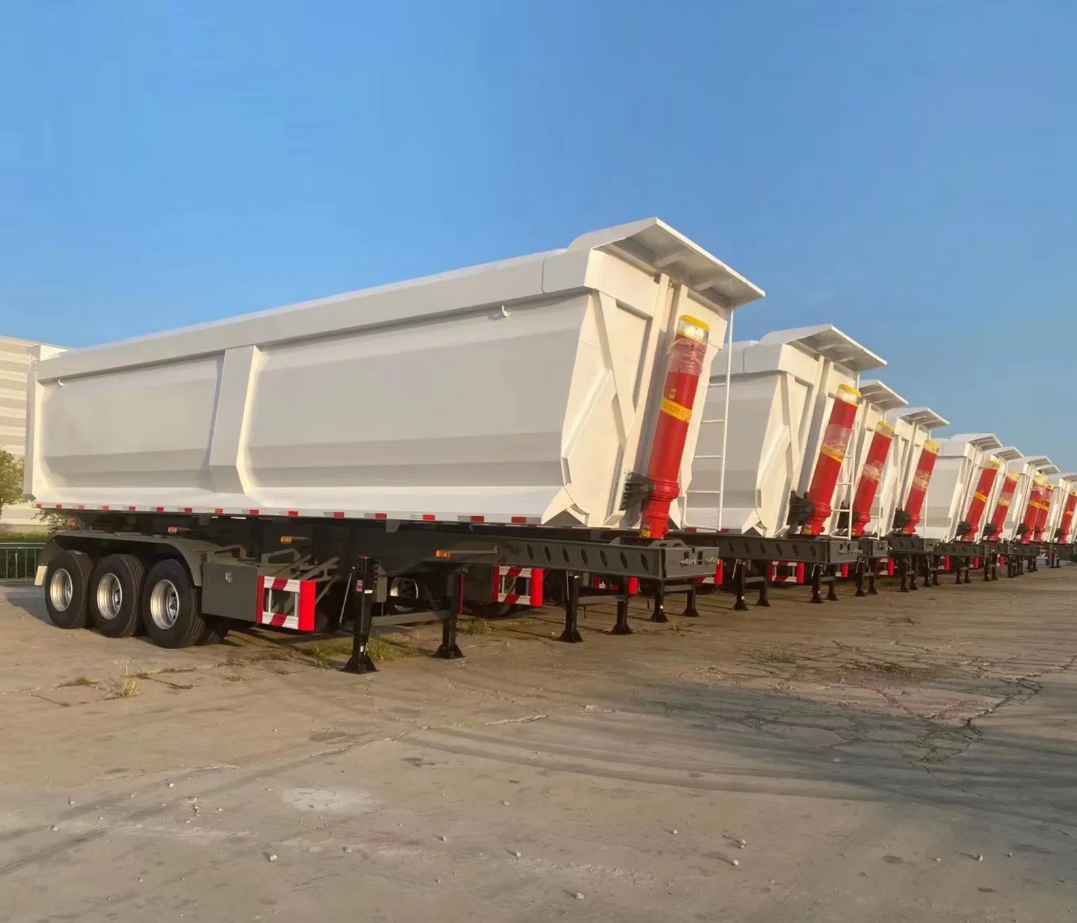

Tipper Trailer 60 Tons Dump Semi Trailer
2 year ago
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
Your benefits:
Best driving characteristics through low centre of gravity and innovative running gear
Payload-optimised through low tare weight
High working speeds through high-performance hydraulics
Long service life through low-wear NAXIN tipper bodies
Available in an angular or round tipper body shape
|
Type |
Tipper Trailer 60 Tons Dump Semi Trailer |
|
Total size |
10572x2550x3564 (Outside) |
|
Cargo Box Size |
9500x2300x1700mm (Inner) |
|
Loading capacity |
37 Cubic Meters |
|
Lifting system |
HYVA Front lifting |
|
Body |
Floor: 10mm; Side wall: 8mm |
|
Main Beam |
Submerged arc welding, 16/10/18mm |
|
Axle |
3 Axles, 3x13 Tons, Fuwa Brand |
|
Suspension |
Mechanical suspension |
|
Leaf spring |
Leaf spring 10pcs |
|
Tire type |
12.00R20, radial Tires |
|
Kingpin |
3.5’’ or 2’’ bolt-in king pin |
|
Landing gear |
Two speed road side winding with sand shoe. Lifting capacity 30T and static load 80T. |
|
Braking system |
WABCO Brand RE6 relay valve, T30/30 spring brake chamber, 40L air tanks |
|
Vehicular applications |
Sand and pebble and mineral transport |
|
Tools box |
1 |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Side marker lamp |
LED type |
|
Color |
Optional(White, Red, Green, Blue, Yellow...) |
