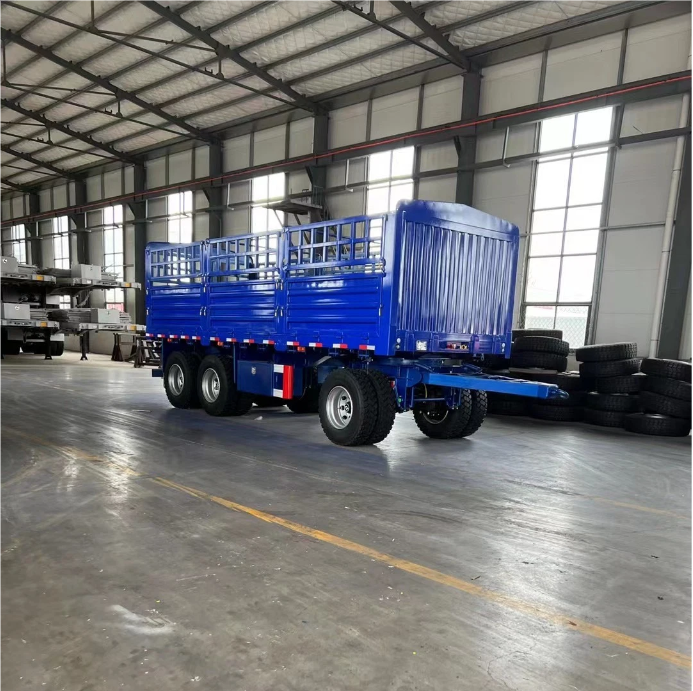

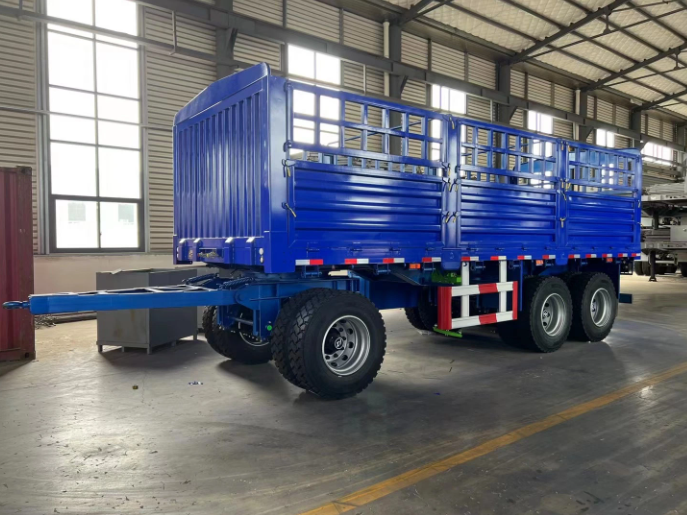

Drawbar Full semi Trailer
2 year ago
Full trailer, also known as tractor trailer. Mainly used in ships, ports and routes, roads, hubs, Bridges, tunnels, multimodal transport logistics system matching.Exclusively in multimodal transport, for all kinds of container transportation and other housing. Can be long-term repeated use, with enough strength. One tractor can(tractor truck) attach 2-3 full trailer.
Items
Drawbar Full semi Trailer
Loading Capacity
30-40 tons
Axle
2+1 pieces, 13T FUWA/BPW axle
Tyre
12 pieces, 12R22.5
Dimensions(LxWxH)
8870mm x 2500 x 3230mm (Fence height:1800mm )
Tare weight
7 tons
Axle spacing
1310mm
Suspension System
Leaf spring suspension
Brake System
Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam
Height 500mm Q345
Chassis
upper 12mm, lower 14mm. Mid web 10mm
Container Twist Locks
4 pcs container twist locks (Shipping 20FT containers)
Drawbar
With 20 tons standard turntable
Electrical System
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box
One tool box with a set of standard trailer tools
Spare Tyre Carrier
One piece or two pieces
