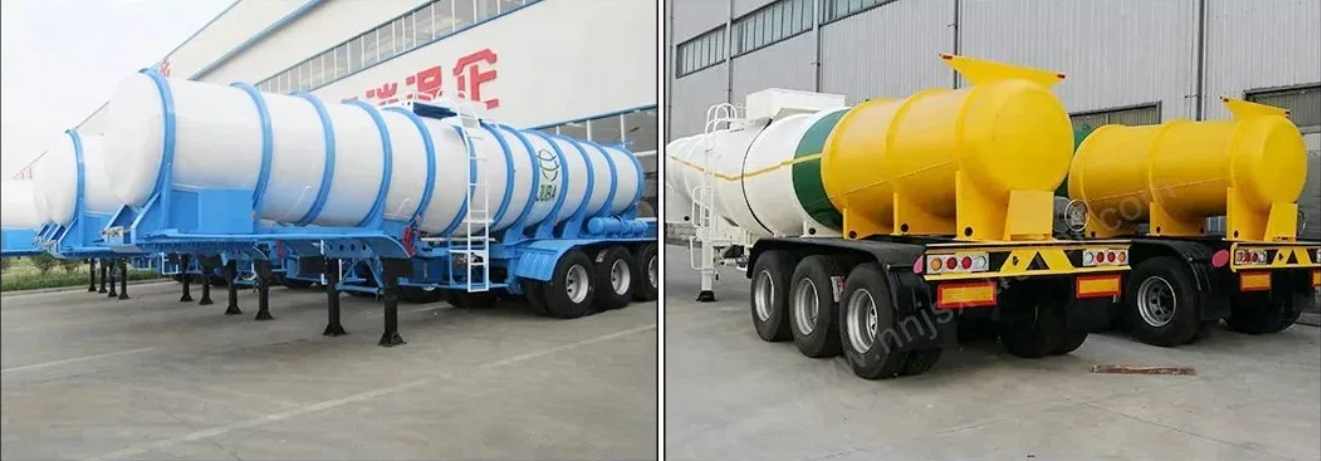

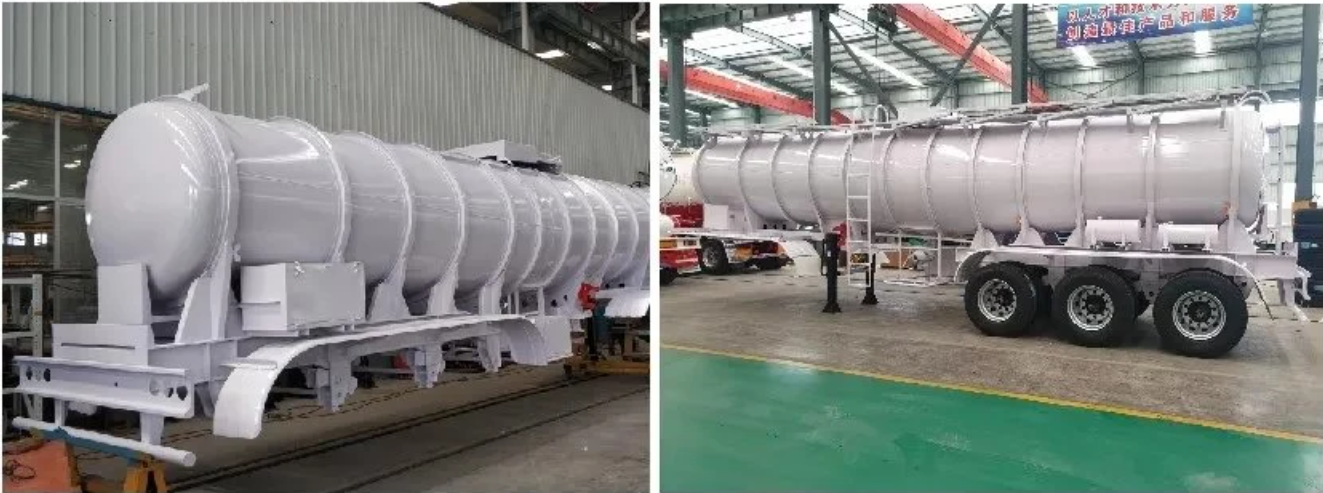

Chemical liquid 40 CBM tank semi-trailer
2 year ago
Tanker semi trailer composed of sealed tanker,running gear (including axles, tires, landing gear, valve and pipeline system, etc.)
This Tanker is applied to transport chemical liquid in a short or long distance. It's an ideal equipment to transport chemical liquid
2.The main character of this chemical liquid tank
1.The trailer are made by advanced techniques from both Europe and China
2.The key parts equipped with high quality fittings both domestic and overseas
3.Skeleton fasten by strength welding process or strengthen bolted connection
4.Safe and reliable driving for any bad road conditions
5.The tank can divided into several sections that can load kinds of loading medium based on client's requirement (Optional)
6. Easy maintained and very light,it is very pure to transport kinds of chemicals
7.That type of tank adopted LLDPE lined steel material which have the corrosion performance to transport chemical liquids
3.Special tank semi-trailer configurations
1.Tank can be divided into serveral compartments based on client's special demand
2.Trailer air suspension is optional
3.1st axle can be lift automated by air
4.Insulation layer and heating system is available
|
Type |
Chemical liquid 40 CBM tank semi-trailer |
|
Overall Dimension |
12500mm*2500*3950mm |
|
Tank Capacity |
45,000L, 3 compartments |
|
Total Volume(m3) |
45 |
|
Tank Body |
The tanker body made of 5 mm steel plate, the foreside head and back side head made of 6 mm steel plate, The shape is Elliptical Or Square. Material is Stainless Steel SS316L. |
|
Suspension |
Tri-axle 10-pcs leaf spring suspension with equalizer beam |
|
Tires |
315/80R22.5, tubeless tires, 12 pieces |
|
Axles |
3 axles, 13T capacity/axle, Fuwa, BPW, or Chinese famous brand |
|
Brakes |
Dual lines pneumatic brake system, parking brake |
|
Under Frame |
|
|
Main Beam |
I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm |
|
Cross Beam |
Mild Alloy Q235B, 14# channel beam |
|
King Pin |
90#(3.5'') or 50# (2.0''), JOST Brand |
|
Landing Gear |
Static capacity 28 Tons |
|
Flatbed Floor |
Checkered sheet, thickness 5 mm |
|
Rear Ladders |
Spring power-assisted |
|
Electrical & Paint |
|
|
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Wiring |
24V, 6 lines |
|
Others |
|
|
Tool box |
1 piece |
|
Spare tires carrier |
1 piece |
|
Color |
Optional (White, Blue, Yellow, Green...) |
