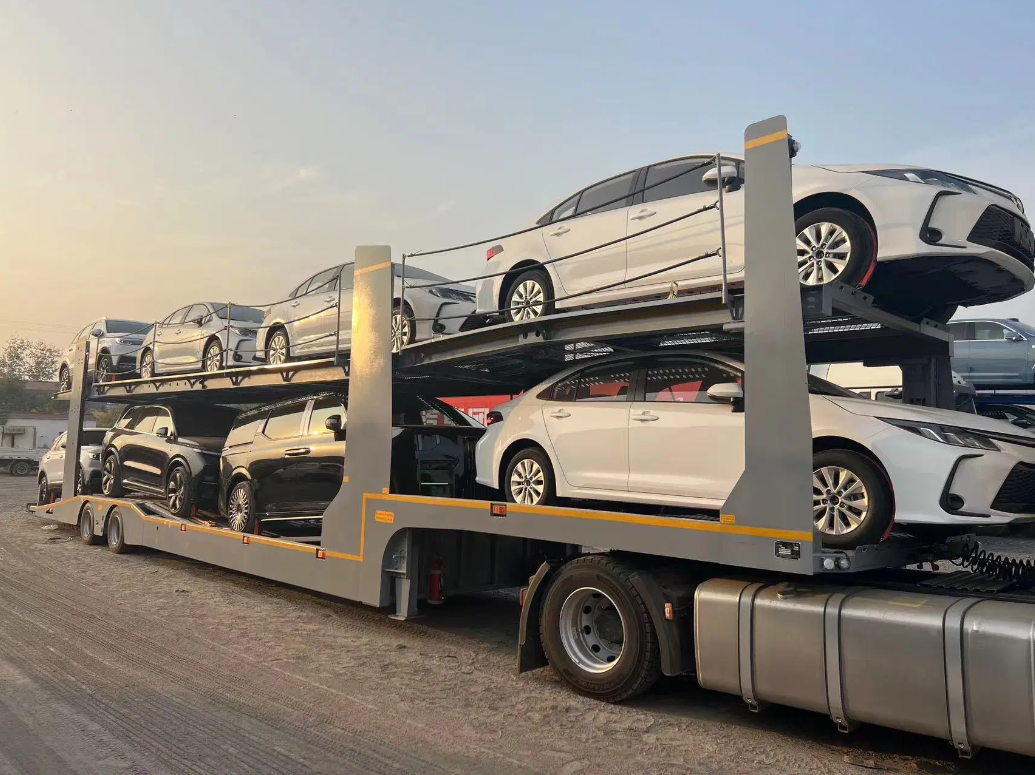

car transport semi trailer

Model

car transport semi trailer

Main size

Overall length

15000mm

Overall width

2700mm

Overall height

3100mm

Loading capacity

Loading 8 units of cars.
Capacity of 25Tons.

Chassis

Main beam

Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam

Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts

Main posts

Material of high tensile steel T700.
5 pairs of each trailer

Side bars

Material is high strength steel T700.
Multi numbers installed.

Floor

Material

Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear

20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin

2 inches size, installed on the kingpin plate.
JOST brand.

Axle

2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire

Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim

Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders

5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit

At the front post, out&back, extend 600mm.

Second unit

At the end post of gooseneck, out&back, extend 600mm.

Third unit

Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit

At the post in front of tire, out&back, extend 900mm.

Fifth unit

At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension

Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem

Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system

12v/24v light system.
LED lights, including side, rear, turning.

ABS system

ABS system installed, HN or Kemi brand.

Others

Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.
