Experience
20 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
|

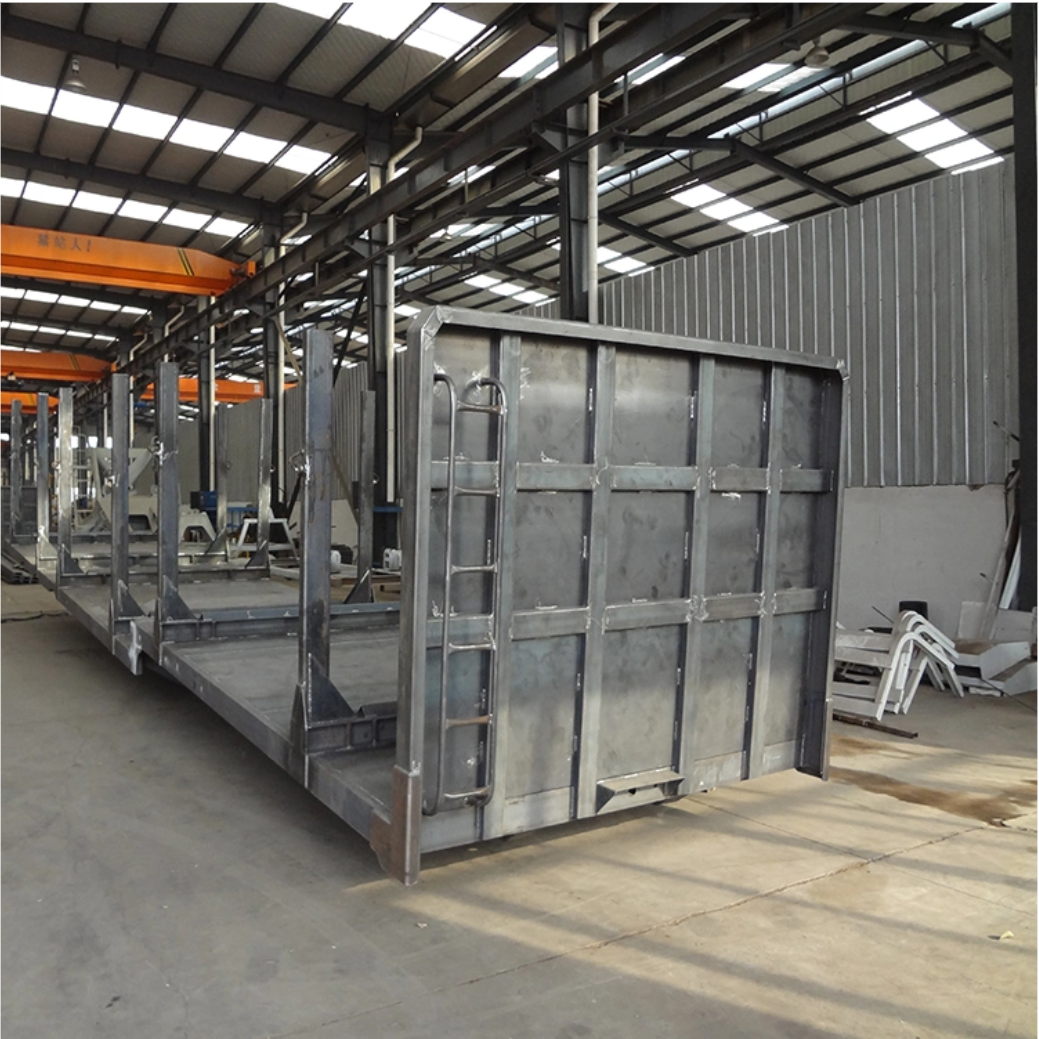

Log transport semi trailer |
|||
|
Assembly |
Composition |
Specification |
Optional |
|
Dimensions |
Size(LxWxH) |
13000x2500x4000mm |
|
|
Curb weight |
10700kg |
|
|
|
Loading weight |
60000kg |
|
|
|
Chassis |
Main beam |
Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Downplate is 16mm. |
|
|
Cross beam |
16# channel steel |
|
|
|
Side beam |
25# channel steel |
|
|
|
King pin |
2'' or 3.5'' traction pin |
Optional JOST |
|
|
Floor |
3mm diamond steel plate |
|
|
|
Fence |
1.5m steel plate 600mm height, fence 500mm+200mm |
|
|
|
Support leg |
China brand 28Tons (Double speed) |
|
|
|
Suspension |
Type |
Common mechanical |
Optional Air suspension |
|
Steel spring |
90(W)mm*13(Thick)mm*10 Layer |
|
|
|
Axle |
Brand |
Fuwa(13000kgx3) |
Optional BPW |
|
Wheel rim |
9.0-22.5 steel wheel rim |
|
|
|
Tire |
12.00R22.5 |
Optional 12.00-20 |
|
|
Brake system |
Brake chamber |
WEBCO, 6 big chamber |
|
|
Brake valve |
KTL/WEBCO |
|
|
|
Brake syste |
Dual line brake system |
Optional ABS |
|
|
Other |
Light |
Tail lamp with tum signal, brake light & reflector, side lamp etc. |
|
|
Landing gear |
28 Ton manual operating, heavy duty landing gear. |
Optional JOST |
|
|
Tool box |
1 set standard tool box |
|
|
|
Spare tire carrier |
2 pcs |
|
|
|
Painting |
1 coat of anticorrosive prime, 2 coats of final paint. |
|
|
