H Section Steel Horizontal Production Line

H Section Steel Horizontal Production Line General introduction:

    Horizontal type H section steel production line is a special welding line for assembling and welding H section steel. Compared with common H section steel vertical production line (first assembling to T type, then welding H-type), it has higher production efficiency and less welding deformation, and is especially suitable for light duty H section steel welding. This production line is composed by assembling machine, preceding welding machine, overturning machine, latter welding machine, and conveyor rollers, which can realize the jobs of H section steel assembling, welding, overturning, and conveying.

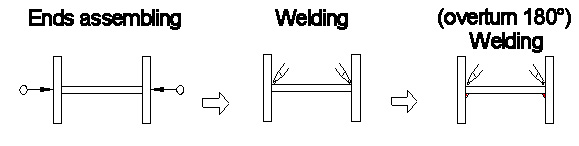

H Section Steel Horizontal Production Line Technical process drawing:

H Section Steel Horizontal Production Line Technical parameters:

H Section Steel Horizontal Production Line Main technical features:

Traditional H-beam welding line (mainly using vertical assembling and fillet welding in the flat position) has big welding deformation and low production efficiency. It is not suitable for light duty H-beam welding, so we developed this horizontal type H-beam production line, which has following advantages:

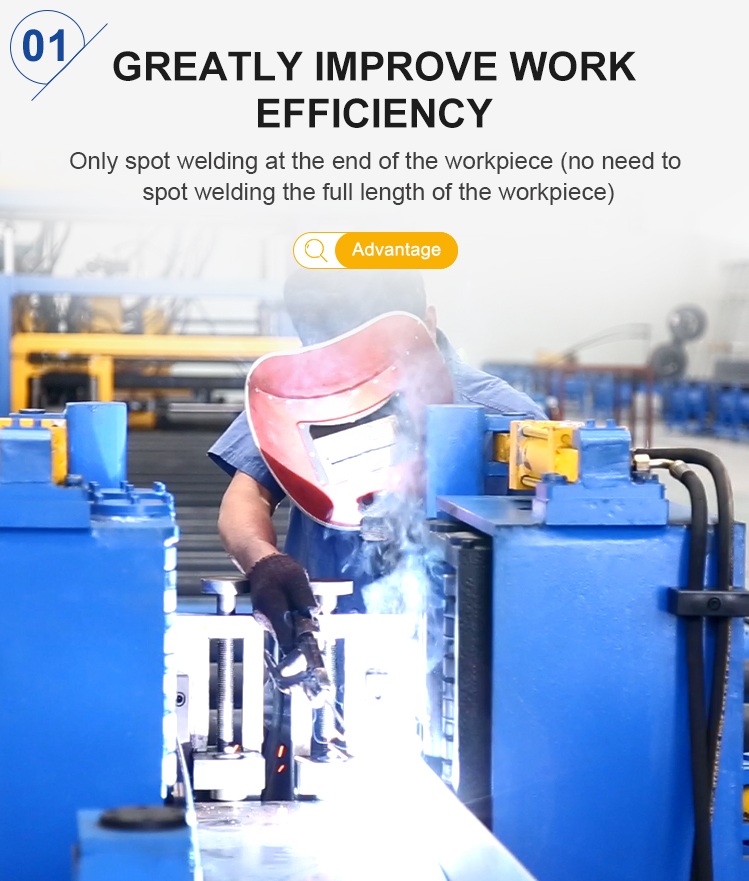

1. When assembly just need spot welding at the end (no need to weld all beam), then come to latter weld process. The machine will position and welding another three free plates, so this will improve the assembly efficiency a lot.

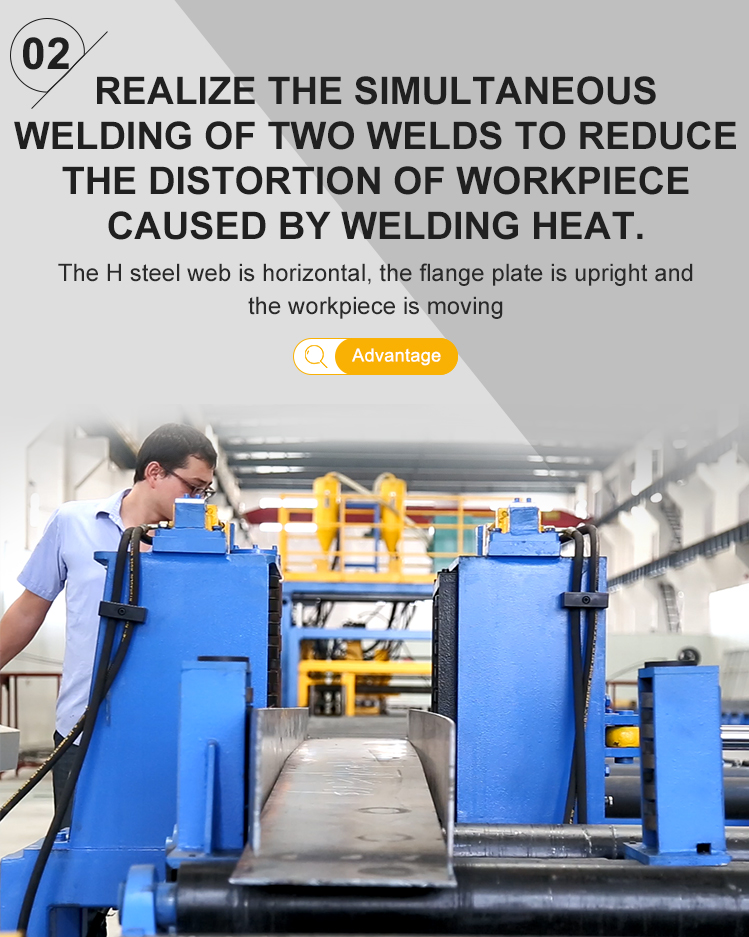

2. The beam put in horizontal position (web plate in horizontal position and flange plate in vertical position), moving the workpiece while welding. This welding way can realized two seams simultaneously welding, which reduced deformation after welding.

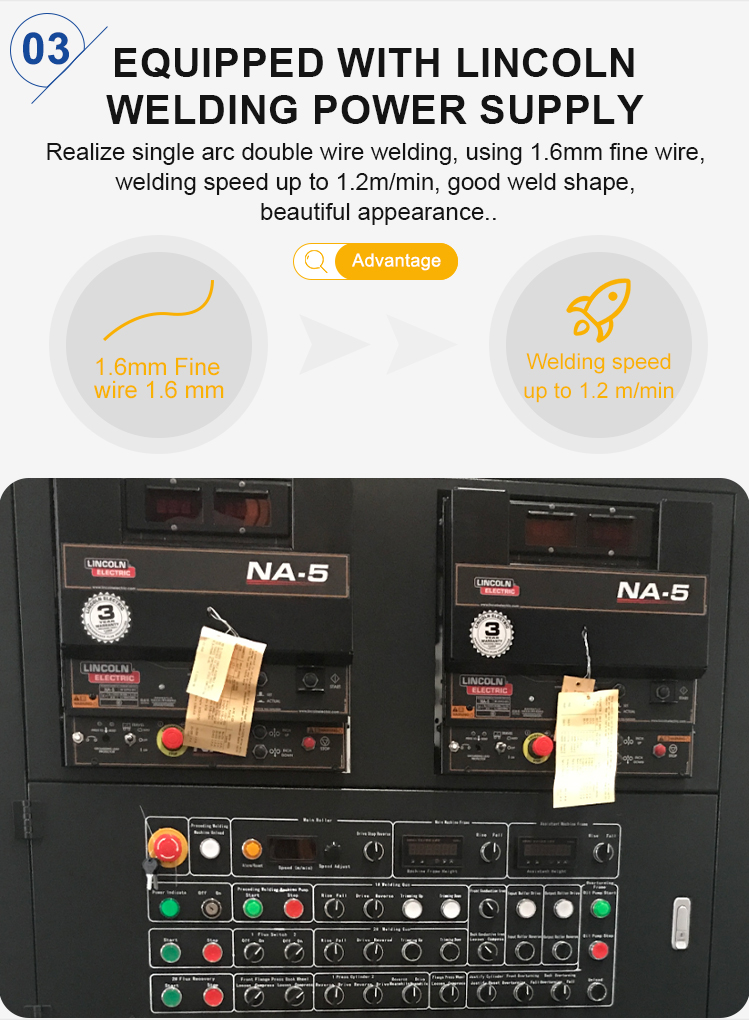

3. The welding power source is American Lincoln DC-1000. It is single arc and double wires .The wire diameter is Φ1.6mm, welding speed is 1.2m/min，so the seam’s quality will be very good and has nice appearance .

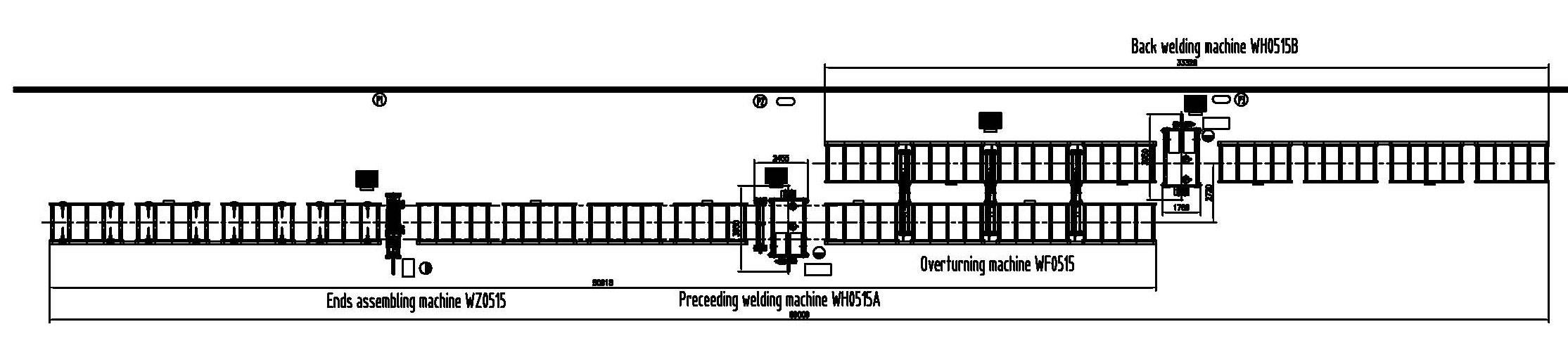

H Section Steel Horizontal Production Line Layout drawing:

H  Section Steel Horizontal Production Line Details:

When assembly, just needed to do spot welding of H beam end, after positioned ,then can go into the welding process, welding machine will re-position the three plate, thus increase assemble speed.

The H beam is placed horizontally(web is horizontal and flange is vertical), and the H beam will move during welding, and can weld two seam at the same time to reduce deformation caused by welding heat.

  Machine is equipped with Lincoln DC-1000 welding power, which used single arc double wire welding mode, wire diameter is 1.6 mm, and welding speed can reach 1200 mm/min, the welding seams are well formed and look beautiful.
