Floor Welding Turntable

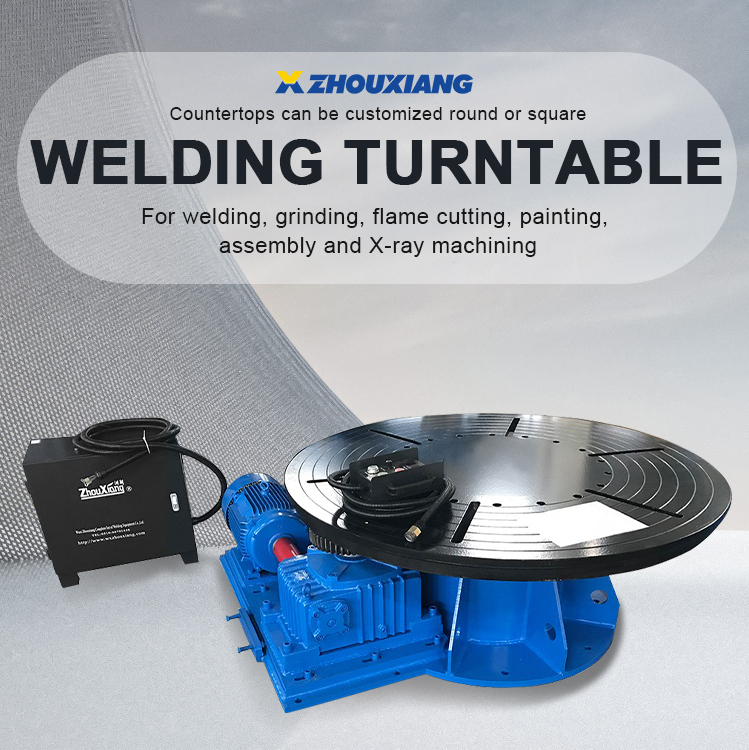

      Our floor welding turntable provide high precision rotational positioning of the workpiece regardless of size. They are proven to help improve weld quality, increase consistency and reduce rework.The welding turntable is a single axis rotating device. The table revolving in both clockwise or anti-clolckwise direction. In addition to welding, they can be used for other applications, such as grinding, flame cutting, painting, assembly and x-ray processes. If you require a special machine,we has the in-house capabilities to design & produce small and large diameter components with clamps and jig tooling for customers. The table can be in round shape or square, depending on customer's request.

Floor Welding Turntable Technical Parameters:



Model
HZT-5
HZT-10
HZT-30
HZT-50
HZT-100
HZT-200
HZT-500
HZT-750
HZT-1000
Load Cap.(ton)
0.5
1
3
5
10
20
50
75
100
Tab Dia.(mm)
800
1000
1500
1500
1800
2000
2500
2800
2800
Rotation Speed(rpm)
0.10-1.00
0.10-1.00
0.05-0.50
0.05-0.50
0.05-0.50
0.02-0.20
0.015-0.15
0.015-0.15
0.010-0.10
Max Eccentricity(mm)
200
200
200
200
200
200
200
200
200
Dimensions L*W*H(m)
0.8*0.8*0.4
1.0*1.0*0.5
1.5*1.5*0.6
1.5*1.5*0.65
1.8*1.8*0.65
2.0*2.0*0.75
2.5*2.5*0.75
2.6*2.6*0.85
2.8*2.8*1.0
Torque(nm)
80
100
400
600
1200
2400
6000
9000
12000
Power(kw)
0.18
0.25
0.55
0.75
1.10
1.50
2.20
3.00
4.00
Model
HZT-5
HZT-10
HZT-30
HZT-50
HZT-100
HZT-200
HZT-500
HZT-750
HZT-1000
Load Cap.(lbs)
1,100
2,200
6,600
11,000
22,000
44,000
110,000
165,000
220,000
Tab Dia.(mm)
800
1000
1500
1500
1800
2000
2500
2800
2800
Rotation Speed(rpm)
0.10-1.00
0.10-1.00
0.05-0.50
0.05-0.50
0.05-0.50
0.02-0.20
0.015-0.15
0.015-0.15
0.010-0.10
Max Eccentricity(mm)
200
200
200
200
200
200
200
200
200
Dimensions L*W*H(m)
0.8*0.8*0.4
1.0*1.0*0.5
1.5*1.5*0.6
1.5*1.5*0.65
1.8*1.8*0.65
2.0*2.0*0.75
2.5*2.5*0.75
2.6*2.6*0.85
2.8*2.8*1.0
Torque(nm)
80
100
400
600
1200
2400
6000
9000
12000
Power(HP)
0.24
0.34
0.74
1.0
1.5
2.0
3.0
4.0
5.4
Floor Welding Turntable  Details:

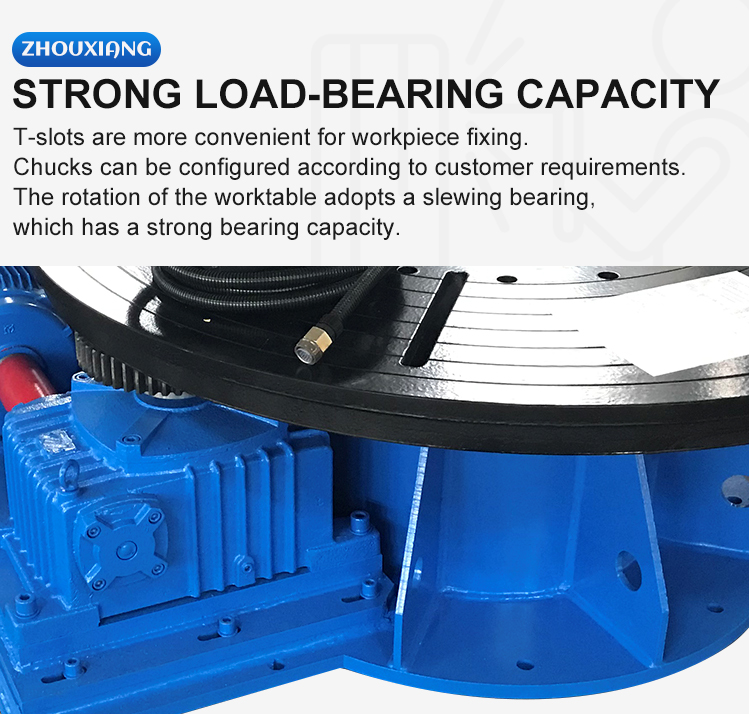

       The frame is welded by plates and profiles, and has sufficient mechanical strength to ensure long-term use without deformation. Work panels are available in double-surface or full-board finishing designs. Chucks can be configured according to customer requirements. The rotation of the worktable adopts a slewing bearing, which has a strong bearing capacity.

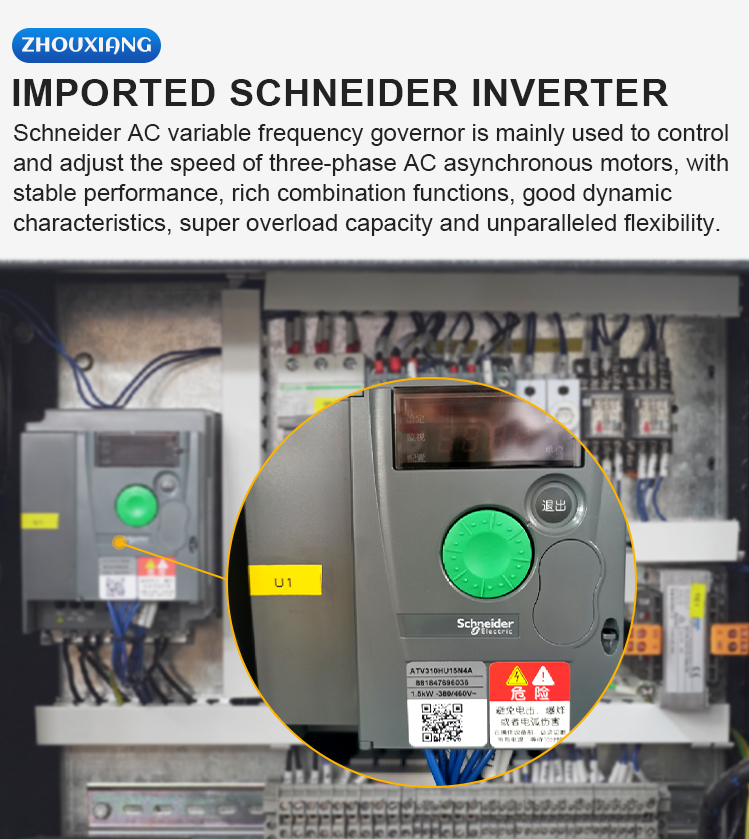

    Schneider AC variable frequency governor is mainly used to control and adjust the speed of three-phase AC asynchronous motors, with stable performance, rich combination functions, good dynamic characteristics, super overload capacity and unparalleled flexibility. Ensure the adjustment response accuracy is high, and the speed operation is stable and reliable.

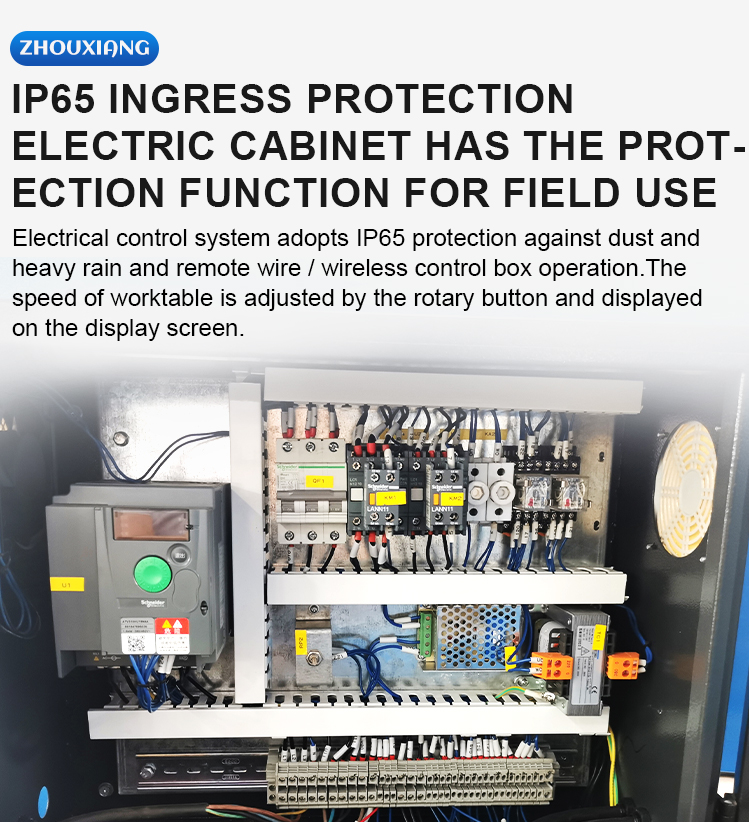

     Electrical control system adopts IP65 protection against dust and heavy rain and remote wire / wireless control box operation. The high-standard electrical control box has neat wiring and clear grounding signs.The operation panel has the functions of forward、reverse and stop. The speed of worktable is adjusted by the rotary button and displayed on the display screen.


What is Automatic Welding Center?

Automatic welding center refers to a key welding process in similar welding components as the core, and the components required to complete the welding process are arranged and combined according to the typical process procedures of the welding process, forming the completion of the welding process. workplace. Welding center is also called welding workstation.

The welding center consists of the following parts:

1. Welding power source: welding machine, machine head, wire feeder;

2. Welding machinery and equipment: such as workpiece roller frame, welding positioner, welding manipulator;

3. Welding auxiliary machinery: such as flux pads, flux conveying and recycling devices;

4. Workpiece transmission device: including feeding, conveying and unloading mechanisms;

5. Automatic welding seam tracking and automatic adjustment device for welding wire dry elongation;

6. Integrated electrical control system.


Why choose us--- China Zhouxiang Complete Set of Welding Equipment Co.,Ltd ?

As the largest H-beam manufacturing equipment manufacturer in China, we have strong design and manufacturing capabilities, with an annual production capacity of US$40 million.

How to produce qualified H-beam? It is an important category of our continuous research for 30 years. Our main products are: CNC Control Flame/Plasma cutting machine、H beam assembling machine、H beam welding machine、H beam straightening machine、H beam shot blasting machine、H beam assembly-welding-straightening multi-functions machine、H beam horizontal productions line、automation welding machine etc.
