Plate And Pipe Fiber Laser Cutting Machine

Plate And Pipe Fiber Laser Cutting Machine Main Features:

This machine is designed by Zhouxiang Laser according to rich machinery design experiences and wide market research. Adopt advanced fiber laser in the world, the power is from 1000W to 6000W, combine multi-function, high precision and high performance together. This machine can process and cut the materials as follows: carbon steel, silicon steel, stainless steel, galvanized sheet, pickling board and other metal materials, square pipe, round pipe, oval pipe and other special shaped pipe and plates. It can be used in all kinds of manufacturing and processing industries: metal plate processing, aviation, electronic, electrical equipment, metro spare parts, automobile, machinery, precise spare parts, elevator, household appliances, craft gift, tools processing, decoration, advertisement, metal processing and so on. It is high efficient, multi-function processing equipment.


Plate And Pipe Fiber Laser Cutting Machine introduction:

This laser cutting machine can used for plate cutting and also can be used for pipe cutting. The cutting edge is smooth and tidy which is especially for metal plate high accurate cutting, meanwhile the mechanical beam can make three dimensions cutting. Compare with the normal CO2 laser cutting, fiber laser cutting is more costly by saving space and gas consumption, it has high photoelectric converting efficiency as a new product of energy conservation and environment protection, and also one of the world technology leading products. It is widely used in panel beating, aviation, aerospace, electrical equipment, metro parts, automobile, grain machinery, textile machinery, engineering machinery, precise parts, ship, metallurgy machinery, elevator,household appliances, craft gift, tooling processing, decoration, advertisement, metal processing etc. varies manufacturing and processing industries.


Plate And Pipe Fiber Laser Cutting Machine advantages:

1、Perfect light beam and adopt double cover fiber ;

2、Have big ratio for surface area /volume of gain medium ;

3、Whole sealing flexible light path. It composed of fiber and fiber components, they adopt fiber fusion technology ,the whole light is inside of fiber wave guide ;

4、Light path is maintenance-free .

5、Adopt single core junction diode pumped laser module that have stable and reliable power ;

6、It has long life and up to one hundred thousand hours;

7、Higher output power,from 1000w—20000w;

8、Save water/electric/gas/cost.

Plate And Pipe Fiber Laser Cutting Machine Components:

NO.

Part

Brand

QTY

Note

1

laser cutting machine CNC controlling system

FsCut CypCut

1set

China

2

Laser power

IPG

1set

Fiber laser

3

X/Y/Z axle motor

Panasonic

3sets

Japan

4

Reducer

Shimpo

1set

Japan

5

Gear rack

APEX

1set

Taiwan

6

Precise linear guideway

HIWIN

1set

Taiwan

7

Laser cutting head

Raytools

Auto focus

1set

Switzerland

8

Regulated power supply

Suzhou Handu

1set

China

9

Pneumatic component

SMC

1set

Japan

10

Cooling system

Sanhe Tongfei

1set

China

11

Electric main controlling system

Mainly Schneider

1pcs

France

12

Scrap discharge system

Zhouxiang

1set

Discharge trolley collecting

13

Ventilation system

Zhouxiang

1set

Shunt ventilation

14

Plate cutting worktable

Zhouxiang

1set

1500×3000mm

15

Pipe cutting worktable

Zhouxiang

1set

Pipe length: 3000mm

16

Dust removal system

Zhouxiang

1set

machine internal pipeline (providing interface size); External pipeline is made by user at site
































Plate And Pipe Fiber Laser Cutting Machine Cutting Samples:

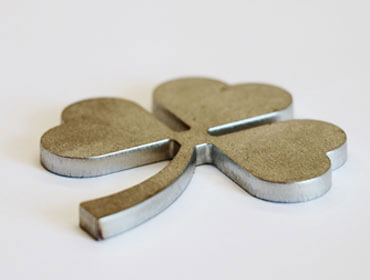

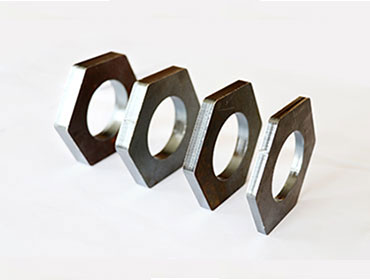

plate cutting 1plate cutting 2

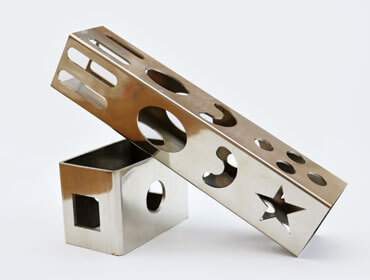

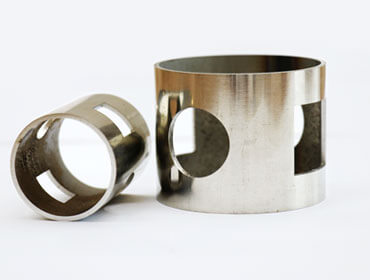

Pipe Cutting 2Pipe Cutting 1
