Welding Manipulator

Welding Manipulator Structure principle:

LCH series welding manipulator is composed of column, welding arm, rotating mechanism, elevating mechanism, boom expansion mechanism, cross trimming, welding head, and electrical box，rotating and moving chassis. It can satisfy multi-direction welding requirements. The elevating of welding arm adopted the way of worm gear transmission and chain drive elevating, its speed changed by converter which has stable transmission and slow and stable speed change. Cross trimming mechanism is used to adjust the deviation between wire and work-piece.

Welding Manipulator Technical parameters:

Welding Manipulator goods supply range:

a.      frame assembly: column, welding arm, chassis, rotating mechanism, moving mechanism, elevating mechanism, boom expansion mechanism, cross trimming, and ladder.

b.      electrical control system: electrical box, manual control operation box and its accessories

c.       Welding system: Zhouxiang MZ-1250 welder (optional), with welding head and wire feeding system, flux recovery system(optional)

d.      spare parts: three 2A melt cores and one piece of documentation

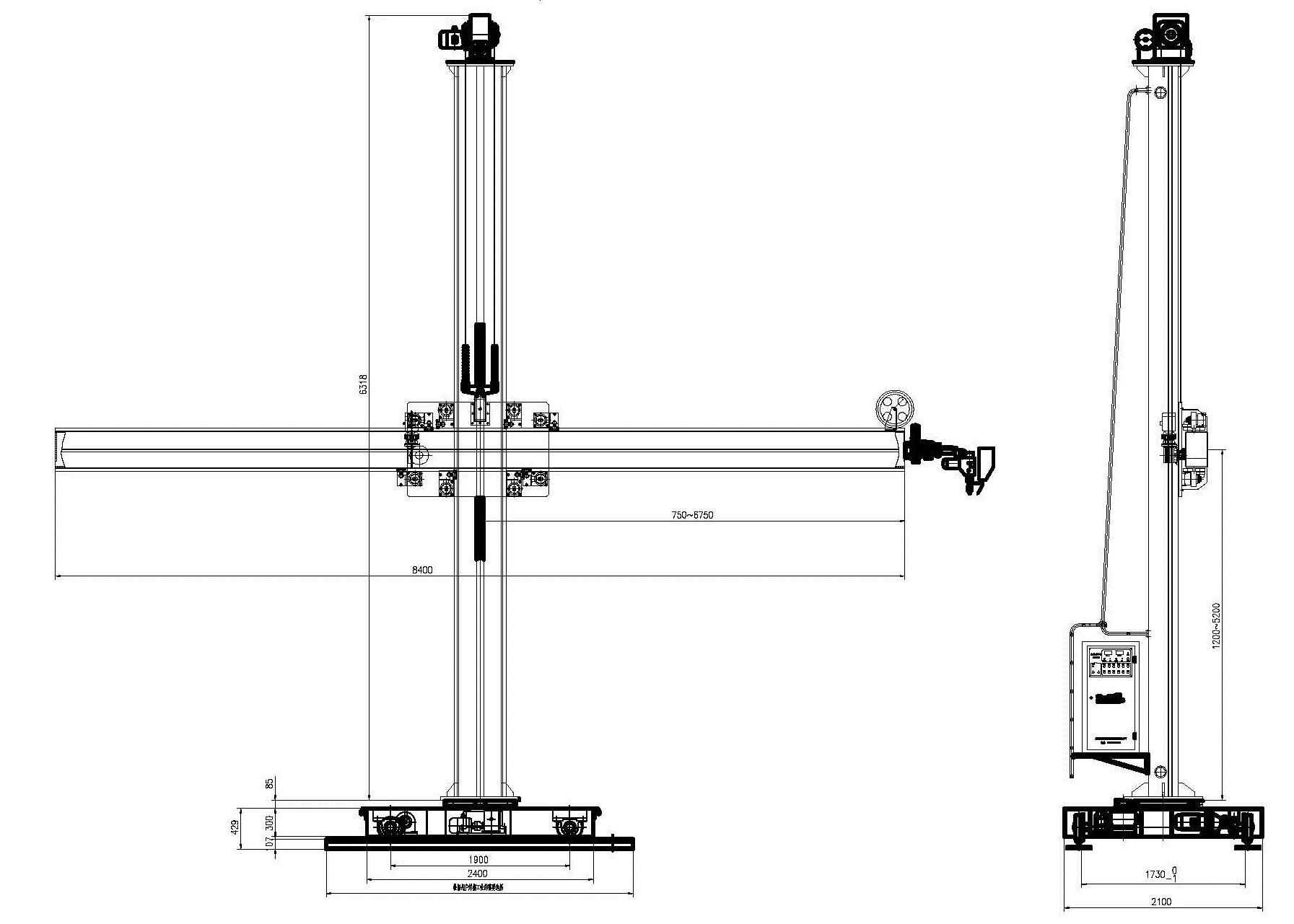

Welding Manipulator general drawing:

Welding Manipulator
