3Axles 40Feet Refrigerated Semi-Trailer

10 month ago

1 0 

2 year

Product details

Product Description
What is a refrigerator/Refrigerated truck trailer ?

A refrigerator/Refrigerated truck trailer is a van or truck designed to carry perishable freight at specific temperatures. Like

refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers.

3Axles 40Feet Refrigerated Semi-Trailer (2)

3Axles 40Feet Refrigerated Semi-Trailer (3)

Specification：

I Beam & chassis	Heavy duty and extra durability designed I beam; welded by automatic Submerged-Arc processes.
Axle	3 axles. BPW brand, 13 ton loading capacity.
Suspension	Spring suspension
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	13.0-22.5 wheel rim, aluminum alloy material
Tire	425/80R22.5 super single tubeless tire, Double Coin brand. One spare tire.
Box	Inner Size(lengthwidthheight): 1375024102650mm, high density polyurethane for insulation.
Accessories	One standard tool box
Cooling system	America brand Termo King SLXe-400 independent cooling system with backup electric power system.
	Working temperature: - 20ºC ~ +27 ºC
	Independent generator: TK486V, 23.5 KW.
	Compressor: model X430 C5, displacement: 492cm³
	Emergency power supply: 380V/3Ph/50Hz, 9.3kw
	Cryogen: 7.5kg.
Overall Size(mm)	1460026004150

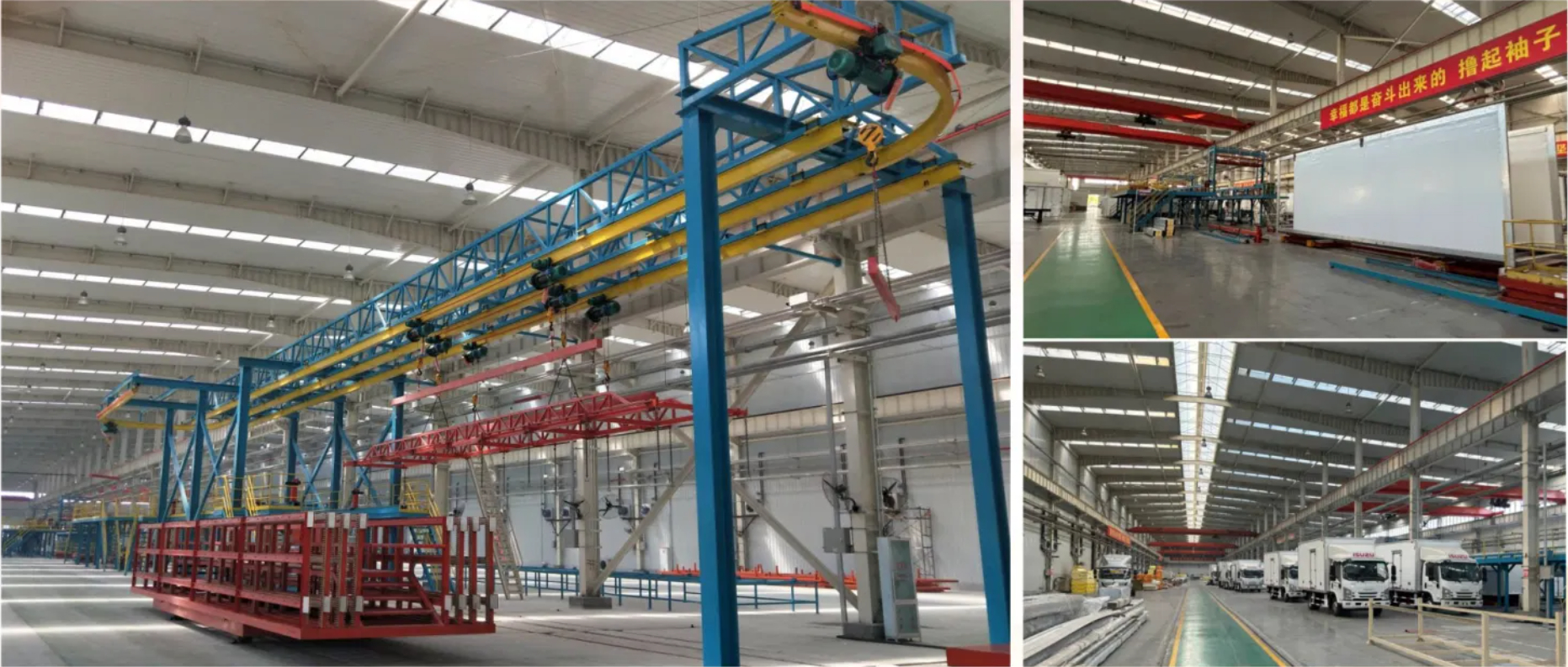

Production line overview：

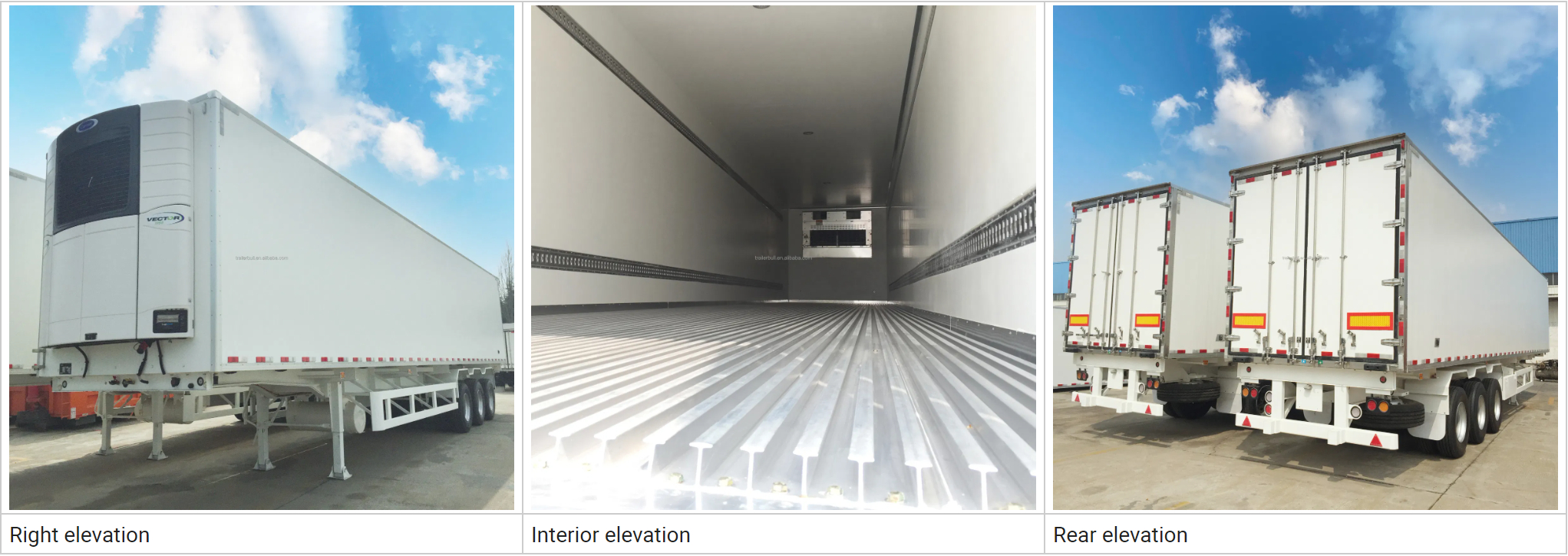

Detailed display：

3Axles 40Feet Refrigerated Semi-Trailer(1)

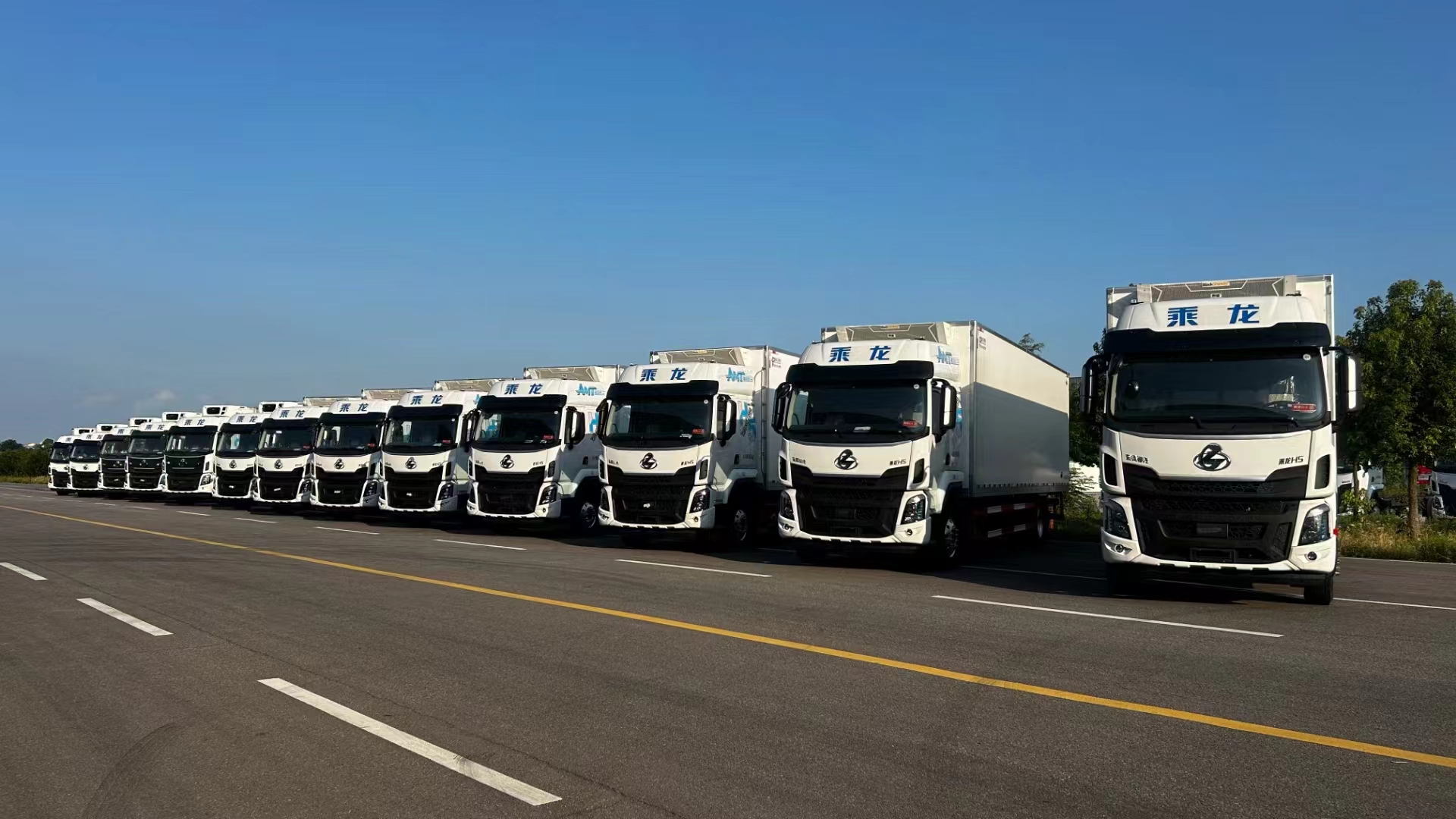

Completed shipment：
