Product details

Product Paramenters

ltem/ Model	ZX-FCM35240-20000W
Effective cutting range	3500×24000mm
X axis stroke	3500mm
Y axis stroke	24000mm
Z axis stroke	1000mm
H beam max cutting width	1200mm
H beam max cutting height	500mm
H beam max cutting length	24000mm
X axis positioning accuracy	±0.2mm
X/ Yaxis positioning accuracy	±0.05mm
X/Y/Z max speed	50m/ min
A axis swing angle	±90°
B axis swing angle	±90°
Maximum acceleration	0.5G
Phase	3
Power Specifications	380V/50HZ
Total power protection level	IP54
Laser power	20000W

Products Description


Steel cutting, cutting holes, engraving, marking, and threading on one machine;

The advanced Germany imported three-dimensional six-axis and five-link  control system for secondary development.

Use laser measurement sensor to accurately measure, with fine hole cutting  processes;

Support various collar forms of the slope cutting process;

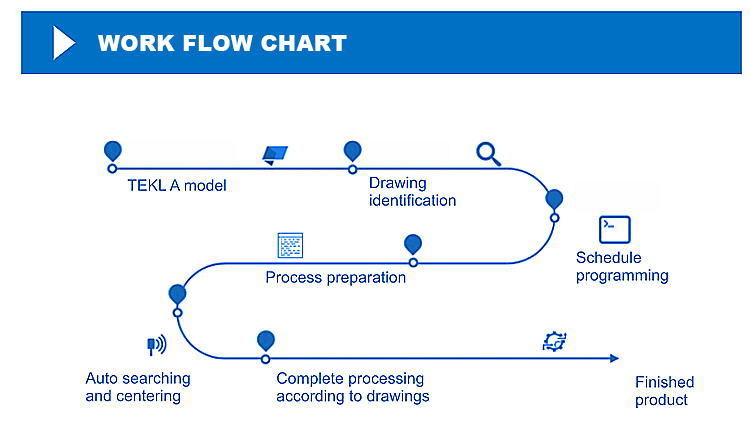

Support TEKLA steel structure three-dimensional model-building data file  cutting.

The cut head of this product is the laser custom product(preface six laser  cutting head ), which uses special customized components. It has automatic  focus, real-time monitoring of APP, and coaxial spraying auxiliary gas cutting  to ensure the best cutting quality.

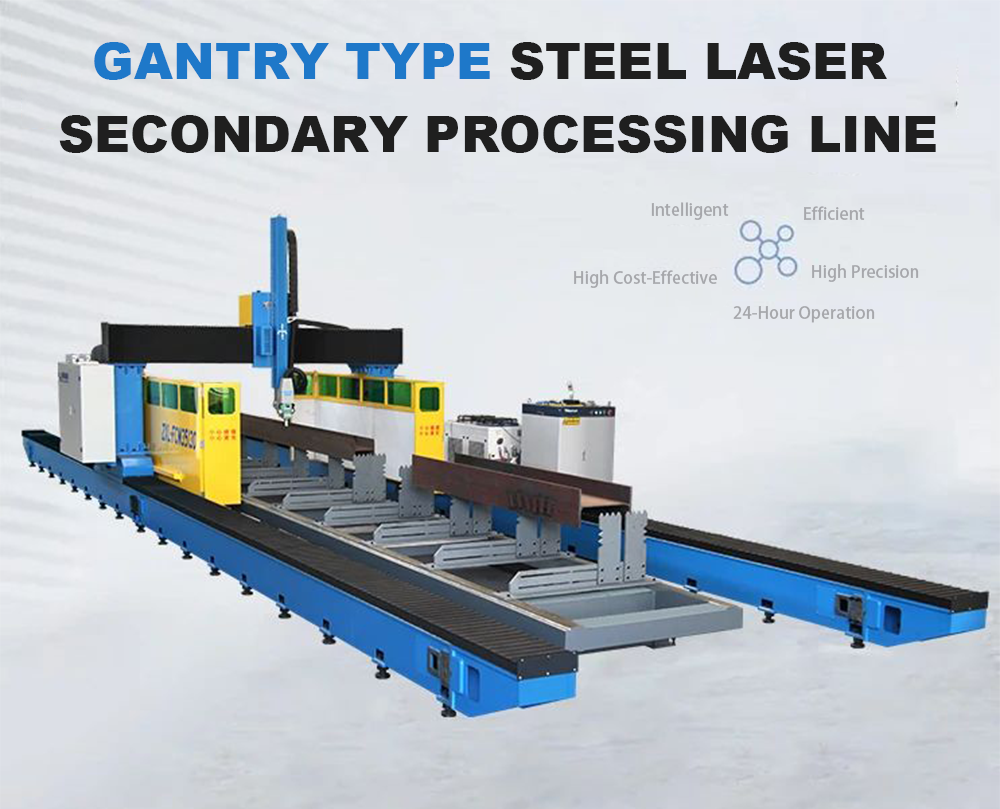

Gantry type advantage


Machine bilateral gear rack transmission is larger, cut stable, and higher accuracy;
The bilateral gear rack is more extended, and the cutting surface can be larger, thereby meeting the personalized needs of customers' large type work-piece;

Parameter Performance


Laser power: Raycus
Cutting torch: Suzhou Porad
Cutting software and nesting software: Wisdom
Cooling system: Hanli
Main machine: Zhouxiang

Parameter performance

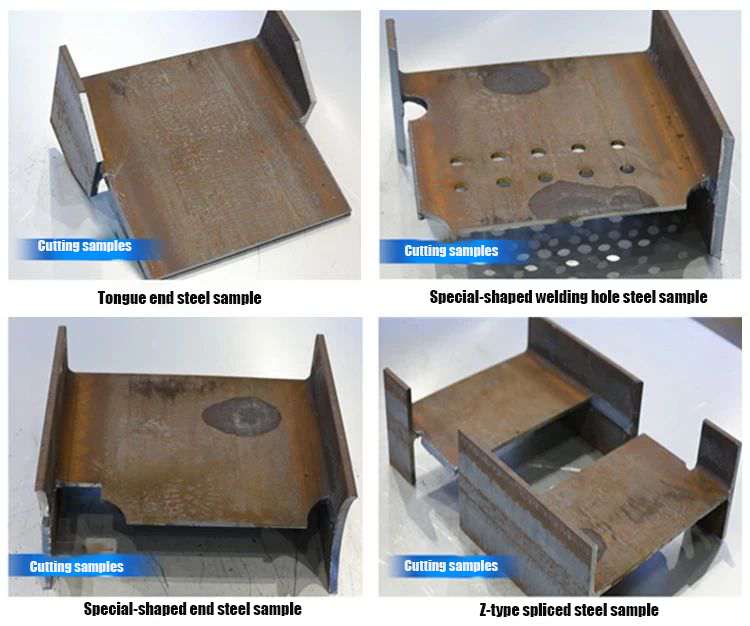

Applicable scenarios: beam cutting, cutting holes, opening slopes, engraving, marking, scribing

Equipment specifications: ZX-FCM35240-20000W

Work average efficiency: 12 meter H beam (600x200mm)6+ pieces can be processed per hour

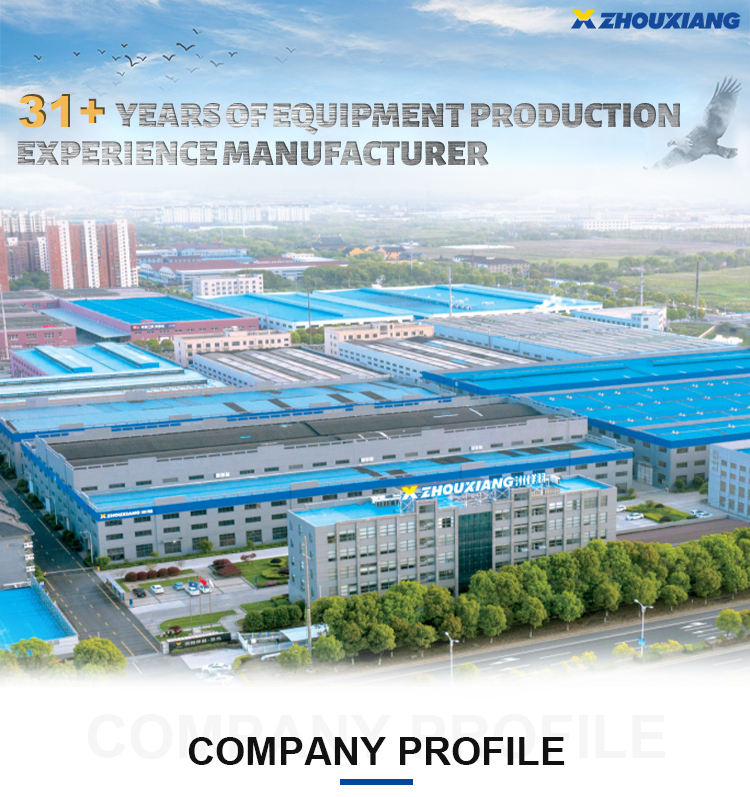

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
