Profile Bending Machine

Profile Bending Machine structure introduction:

    This arc down-adjusting NC  digital display three-roller machine is specially used for profile bending. It can bend round and arc shape work-piece, and is widely used in oil, chemistry, ship-building, water and electricity, metal structure and machine making industry.

    This machine is composed of main body, down roller, supporting roller, mould, transmission part, NC digital display, electrical system and hydraulic system.

1. Electrical system 2. Supporting roller 3. mould  4. dowm roller  5. main body

6. Hydraulic system 7. NC digital display 8. transmission

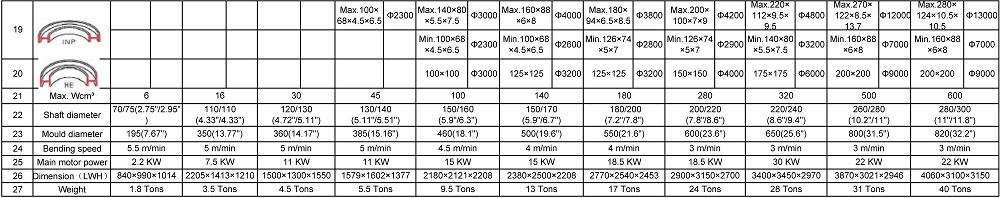

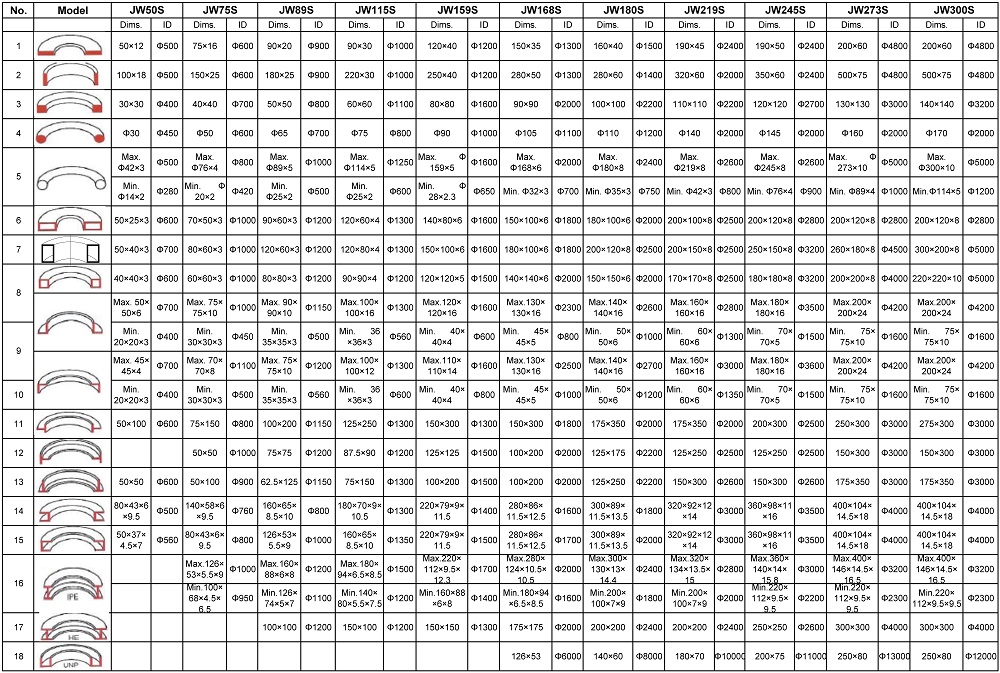

Profile Bending Machine Technical parameters:

Profile Bending Machine Mould:

The machine can equip with many kinds of mould, to process different types of workpiece. For example:

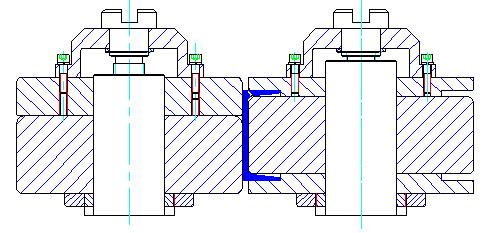

(Mould for channel steel bending)

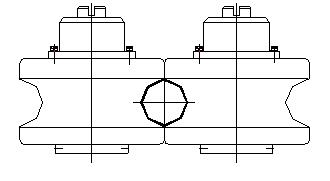

(Mould for pipe bending)

Profile Bending Machine Goods Supply Range:

1. Main machine part 1 set

2. Special designed mould (according to customer's request)

3. Electrical cabinet  1 set

4. Operation box   1 set

5. Hydraulic station 1 set
