Product details

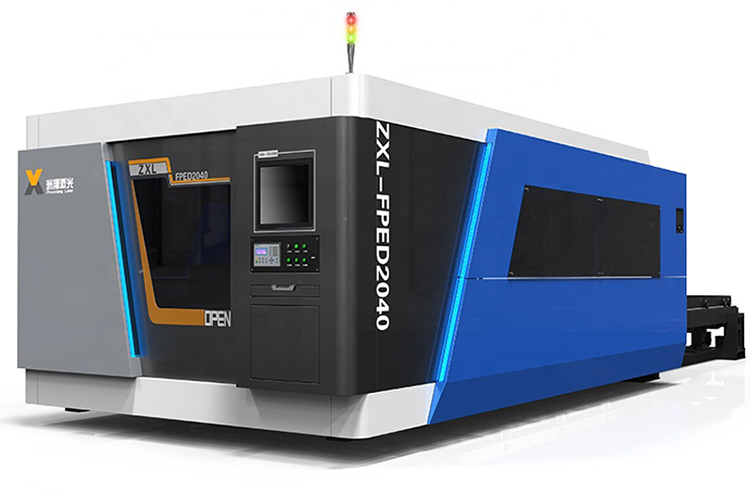

High configuration whole cover 3000w metal cnc fiber laser cutting machine

Laser cutting concentrate the light beam on the material surface by optical focusing mirror, melt the material, blow off the cutting slag by high-speed air flow and form a smooth cutting seam, and is suitable for cutting carbon steel, stainless steel and aluminum plate.

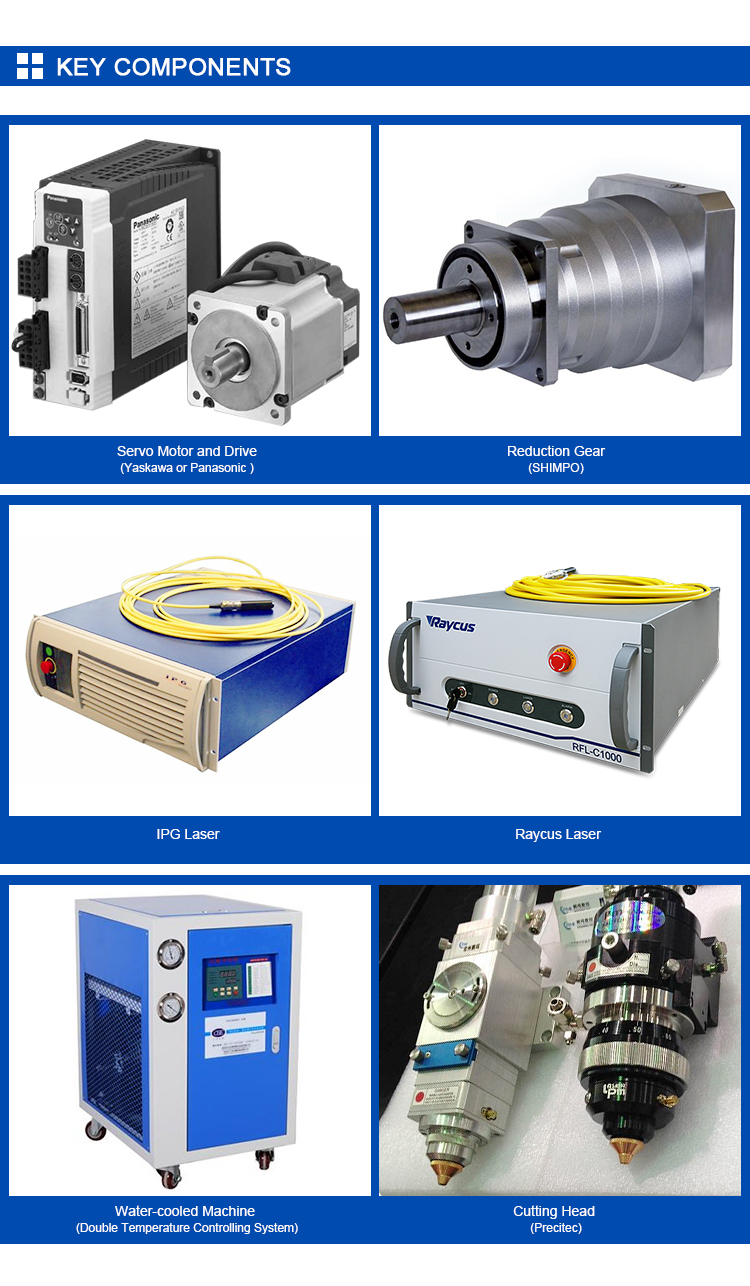

This machine adopts imported precision ball screw and linear guideway double driving, which can make sure of machine’s precision and low noise.
The machine adopts advanced exchange worktable, as well as protective cover which can better ensure the working environment of workers, the exchange table will be much convenient for loading and unloading, which greatly improves work efficiency.
Cutting range: 1500×3000mm and can be customized.

Specification

Items	Parameter
Fiber Laser Power	2000-30000W
Stroke	X axis	4000/6000/8000mm
	Y axis	2000/2500mm
	Z axis	280mm
Moving Speed	X axis	150m/min
	Y axis	150m/min
	Z axis	50m/min
Accuracy	X/Y axis position accuracy	±0.02mm
Accuracy	X/Y axis repeat positioning accuracy	±0.02mm
The exact process range can be designed and manufactured according to customer’s requirements.

laser power	Fiber laser cutting thickness
laser power	carbon steel	stainless steel	aluminum alloy
1000W	10mm	5mm	2mm
1500W	14mm	6mm	3mm
2000W	16mm	8mm	4mm
3000W	20mm	10mm	6mm
4000W	22mm	12mm	10mm
6000W	25mm	14mm	12mm
8000W	25mm	20mm	16mm
10000W	30mm	25mm	18mm

High configuration whole cover 3000w metal cnc fiber laser cutting machine

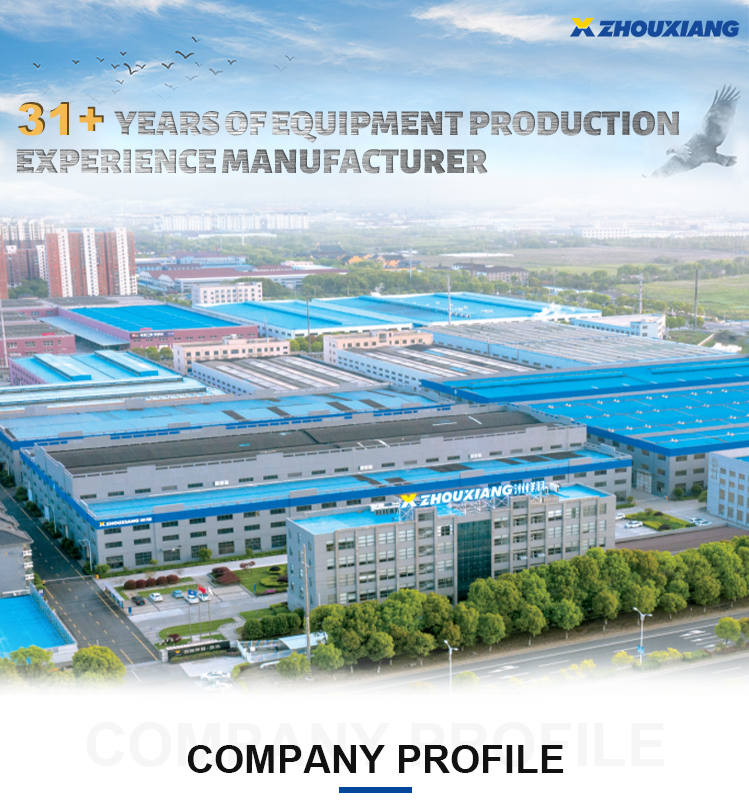

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.

Our Services
