CNC Pipe Intersection Cutting Machine
CNC Pipe Intersection Cutting Machine main introduction:
ZPB series CNC pipe intersection cutting machine is special CNC equipment which is used for cutting metal pipe automatically. It can realize auto program and auto CNC nesting work for any complicated joint type of intertube and pipe and non-intertube. And can cut any type welding bevel at one time. This machine is widely used for steel structure, shipbuilding, bridge and heavy machine industries.
CNC Pipe Intersection Cutting Machine functions:
1. mainly
used in thermal cutting for intercross line and end of various pipe systems.
2. suitable workpiece material：mild steel, stainless steel, Aluminium.

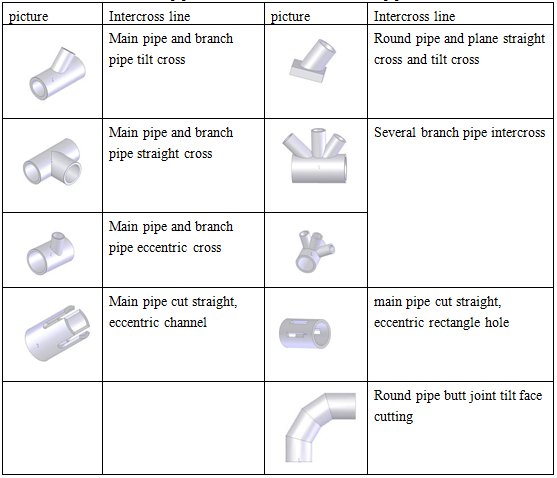

CNC Pipe Intersection Cutting Machine cutting performance:
CNC Pipe Intersection Cutting Machine moving axis:
movement axis
Option of cutting axis number
6
axis
X
axis：
Pipe rotating axis
★
Y
axis：
Torch horizontal moving axis along with pipe axial direct
★
Z
axis：
Torch complanate swing axis along with
pipe diameter direct
★
U
axis：
Torch cart vertical elevating axis
☆
V
axis
Forward
and backward axis
☆
W
axis:
Torch
complanate swing axis along with pipe axial direction
★

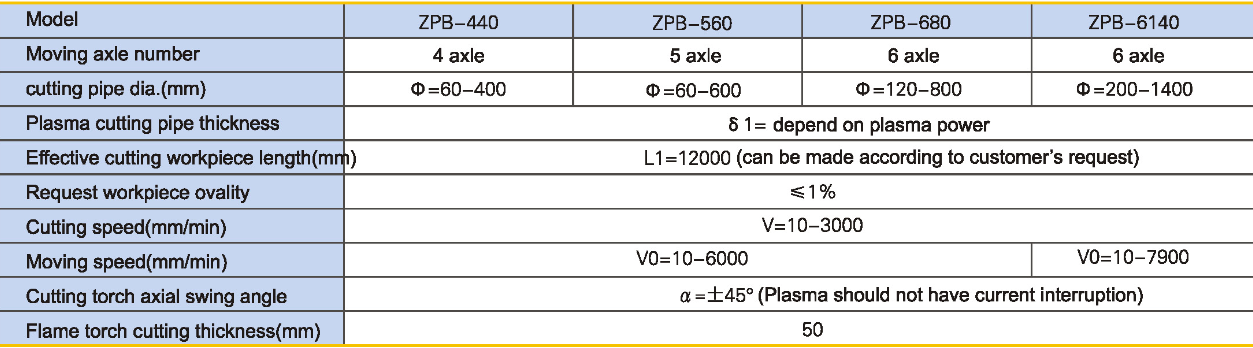

CNC Pipe Intersection Cutting Machine Technical parameter:
